Custom Connectors

Each of the services support providing a Custom Connector. It should be a Python class available in the Python environment running the ingestion process (e.g., EC2 instance, Airflow host, Docker Image...). It should also match specific constraints on the methods to implement and how to send the Entities to be created.

In this guide, we'll walk through a possible implementation. The example is based on a Database Service, but the process is the same for Pipelines, Dashboard or Messaging services.

Note

This guide is based on a working example in the OpenMetadata Demos repository: link.

We'd recommend to go through the example to better understand how all the pieces should look like.

A connector is a class that extends from metadata.ingestion.api.source.Source. It should implement all the required methods (docs).

In connector/my_awesome_connector.py you have a minimal example of it.

Note how the important method is the next_record. This is the generator function that will be iterated over to send all the Create Entity Requests to the Sink. Read more about the Workflow here.

The Sink is expecting Create Entity Requests. To get familiar with the Python SDK and understand how to create the different Entities, a recommended read is the Python SDK docs.

We do not have docs and examples of all the supported Services. A way to get examples on how to create and fetch other types of Entities is to directly refer to the ometa integration tests.

We'll need to package the code so that it can be shipped to the ingestion container and used there. In this demo you can find a simple setup.py that builds the connector module.

If you want to use the connector from the UI, the Python environment running the ingestion process should contain the new code you just created. For example, if running via Docker, the openmetadata-ingestion image should be aware of your new package.

We will be running the demo against the OpenMetadata version 0.12.2, therefore, our Dockerfile looks like:

# Base image from the right version
FROM openmetadata/ingestion:0.12.2

# Let's use the same workdir as the ingestion image
WORKDIR ingestion
USER airflow

# Install our custom connector
# For a PROD image, this could be picking up the package from your private package index
COPY connector connector
COPY setup.py .
RUN pip install --no-deps .

We have a Makefile prepared for you to run make run. This will get OpenMetadata up in Docker Compose using the custom Ingestion image.

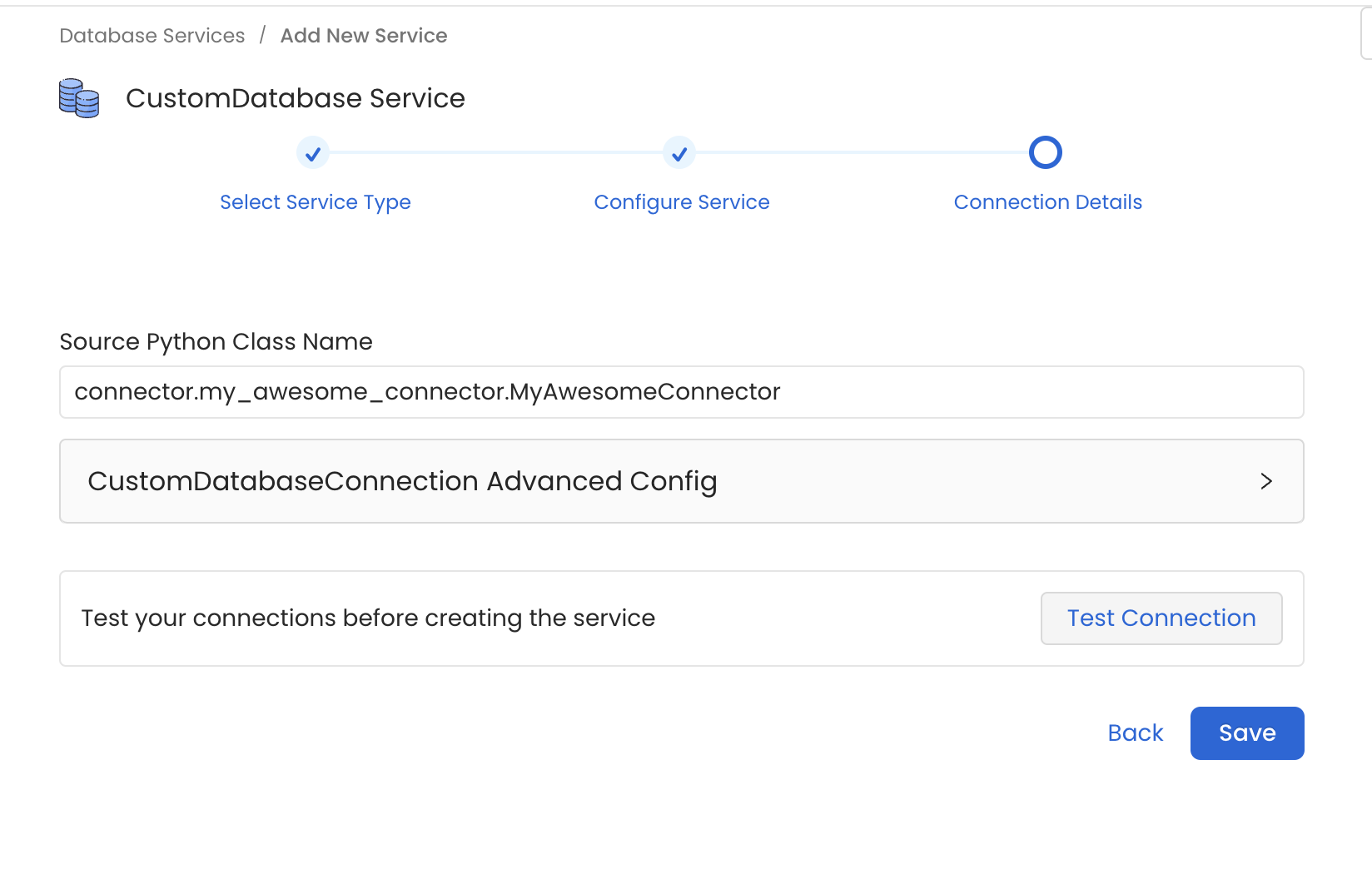

In the example we prepared a Database Connector. Thus, go to Database Services > Add New Service > Custom and set the Source Python Class Name as connector.my_awesome_connector.MyAwesomeConnector.

Note how we are specifying the full module name so that the Ingestion Framework can import the Source class.

Custom Connector
