Connection Options

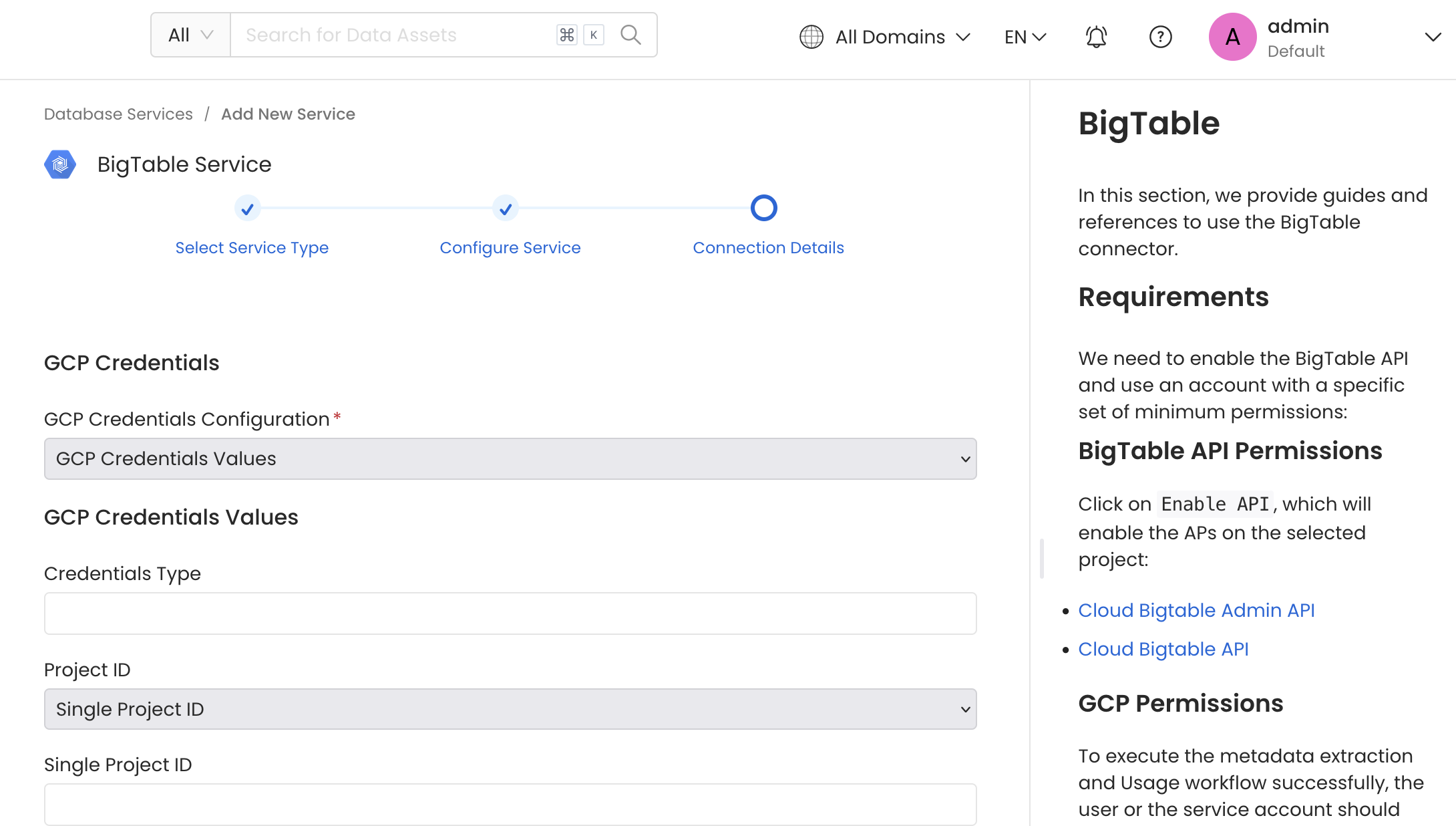

GCP Credentials: You can authenticate with your BigTable instance using either GCP Credentials Path where you can specify the file path of the service account key or you can pass the values directly by choosing the GCP Credentials Values from the service account key file.

You can checkout this documentation on how to create the service account keys and download it.

GCP Credentials Values: Passing the raw credential values provided by BigTable. This requires us to provide the following information, all provided by BigTable:

• Credentials type: Credentials Type is the type of the account, for a service account the value of this field is service_account. To fetch this key, look for the value associated with the type key in the service account key file.
• Project ID: A project ID is a unique string used to differentiate your project from all others in Google Cloud. To fetch this key, look for the value associated with the project_id key in the service account key file. You can also pass multiple project id to ingest metadata from different BigTable projects into one service.
• Private Key ID: This is a unique identifier for the private key associated with the service account. To fetch this key, look for the value associated with the private_key_id key in the service account file.
• Private Key: This is the private key associated with the service account that is used to authenticate and authorize access to BigTable. To fetch this key, look for the value associated with the private_key key in the service account file.
• Client Email: This is the email address associated with the service account. To fetch this key, look for the value associated with the client_email key in the service account key file.
• Client ID: This is a unique identifier for the service account. To fetch this key, look for the value associated with the client_id key in the service account key file.
• Auth URI: This is the URI for the authorization server. To fetch this key, look for the value associated with the auth_uri key in the service account key file. The default value to Auth URI is https://accounts.google.com/o/oauth2/auth.
• Token URI: The Google Cloud Token URI is a specific endpoint used to obtain an OAuth 2.0 access token from the Google Cloud IAM service. This token allows you to authenticate and access various Google Cloud resources and APIs that require authorization. To fetch this key, look for the value associated with the token_uri key in the service account credentials file. Default Value to Token URI is https://oauth2.googleapis.com/token.
• Authentication Provider X509 Certificate URL: This is the URL of the certificate that verifies the authenticity of the authorization server. To fetch this key, look for the value associated with the auth_provider_x509_cert_url key in the service account key file. The Default value for Auth Provider X509Cert URL is https://www.googleapis.com/oauth2/v1/certs
• Client X509Cert URL: This is the URL of the certificate that verifies the authenticity of the service account. To fetch this key, look for the value associated with the client_x509_cert_url key in the service account key file.

GCP Credentials Path: Passing a local file path that contains the credentials.

Advanced Configuration

Database Services have an Advanced Configuration section, where you can pass extra arguments to the connector and, if needed, change the connection Scheme.

This would only be required to handle advanced connectivity scenarios or customizations.

• Connection Options (Optional): Enter the details for any additional connection options that can be sent to database during the connection. These details must be added as Key-Value pairs.
• Connection Arguments (Optional): Enter the details for any additional connection arguments such as security or protocol configs that can be sent during the connection. These details must be added as Key-Value pairs.

Advanced Configuration

Metadata Ingestion Options

• Name: This field refers to the name of ingestion pipeline, you can customize the name or use the generated name.

• Database Filter Pattern (Optional): Use to database filter patterns to control whether or not to include database as part of metadata ingestion.

  • Include: Explicitly include databases by adding a list of comma-separated regular expressions to the Include field. OpenMetadata will include all databases with names matching one or more of the supplied regular expressions. All other databases will be excluded.
  • Exclude: Explicitly exclude databases by adding a list of comma-separated regular expressions to the Exclude field. OpenMetadata will exclude all databases with names matching one or more of the supplied regular expressions. All other databases will be included.

• Schema Filter Pattern (Optional): Use to schema filter patterns to control whether to include schemas as part of metadata ingestion.

  • Include: Explicitly include schemas by adding a list of comma-separated regular expressions to the Include field. OpenMetadata will include all schemas with names matching one or more of the supplied regular expressions. All other schemas will be excluded.
  • Exclude: Explicitly exclude schemas by adding a list of comma-separated regular expressions to the Exclude field. OpenMetadata will exclude all schemas with names matching one or more of the supplied regular expressions. All other schemas will be included.

• Table Filter Pattern (Optional): Use to table filter patterns to control whether to include tables as part of metadata ingestion.

  • Include: Explicitly include tables by adding a list of comma-separated regular expressions to the Include field. OpenMetadata will include all tables with names matching one or more of the supplied regular expressions. All other tables will be excluded.
  • Exclude: Explicitly exclude tables by adding a list of comma-separated regular expressions to the Exclude field. OpenMetadata will exclude all tables with names matching one or more of the supplied regular expressions. All other tables will be included.

• Enable Debug Log (toggle): Set the Enable Debug Log toggle to set the default log level to debug.

• Mark Deleted Tables (toggle): Set the Mark Deleted Tables toggle to flag tables as soft-deleted if they are not present anymore in the source system.

• Mark Deleted Tables from Filter Only (toggle): Set the Mark Deleted Tables from Filter Only toggle to flag tables as soft-deleted if they are not present anymore within the filtered schema or database only. This flag is useful when you have more than one ingestion pipelines. For example if you have a schema

• includeTables (toggle): Optional configuration to turn off fetching metadata for tables.

• includeViews (toggle): Set the Include views toggle to control whether to include views as part of metadata ingestion.

• includeTags (toggle): Set the 'Include Tags' toggle to control whether to include tags as part of metadata ingestion.

• includeOwners (toggle): Set the 'Include Owners' toggle to control whether to include owners to the ingested entity if the owner email matches with a user stored in the OM server as part of metadata ingestion. If the ingested entity already exists and has an owner, the owner will not be overwritten.

• includeStoredProcedures (toggle): Optional configuration to toggle the Stored Procedures ingestion.

• includeDDL (toggle): Optional configuration to toggle the DDL Statements ingestion.

• queryLogDuration (Optional): Configuration to tune how far we want to look back in query logs to process Stored Procedures results.

• queryParsingTimeoutLimit (Optional): Configuration to set the timeout for parsing the query in seconds.

• useFqnForFiltering (toggle): Regex will be applied on fully qualified name (e.g service_name.db_name.schema_name.table_name) instead of raw name (e.g. table_name).

• Incremental (Beta): Use Incremental Metadata Extraction after the first execution. This is done by getting the changed tables instead of all of them. Only Available for BigQuery, Redshift and Snowflake

  • Enabled: If True, enables Metadata Extraction to be Incremental.
  • lookback Days: Number of days to search back for a successful pipeline run. The timestamp of the last found successful pipeline run will be used as a base to search for updated entities.
  • Safety Margin Days: Number of days to add to the last successful pipeline run timestamp to search for updated entities.

• Threads (Beta): Use a Multithread approach for Metadata Extraction. You can define here the number of threads you would like to run concurrently. For further information please check the documentation on Metadata Ingestion - Multithreading

Note that the right-hand side panel in the OpenMetadata UI will also share useful documentation when configuring the ingestion.
