{% connectorDetailsHeader
name="PinotDB"
stage="PROD"
platform="OpenMetadata"
availableFeatures=["Metadata", "Data Profiler", "Data Quality", "dbt", "View Lineage", "View Column-level Lineage", "Sample Data", "Auto-Classification"]
unavailableFeatures=["Query Usage", "Owners", "Tags", "Stored Procedures"]
/ %}

In this section, we provide guides and references to use the PinotDB connector.

Configure and schedule PinotDB metadata and profiler workflows from the OpenMetadata UI:

- [Metadata Ingestion](#metadata-ingestion)
- [Data Profiler](/how-to-guides/data-quality-observability/profiler/workflow)
- [Data Quality](/how-to-guides/data-quality-observability/quality)
- [dbt Integration](/connectors/ingestion/workflows/dbt)
- [Lineage](/how-to-guides/data-lineage/workflow)
- [Troubleshooting](/connectors/database/pinotdb/troubleshooting)

{% partial file="/v1.10/connectors/ingestion-modes-tiles.md" variables={yamlPath: "/connectors/database/pinotdb/yaml"} /%}

## Metadata Ingestion

{% partial
  file="/v1.10/connectors/metadata-ingestion-ui.md"
  variables={
    connector: "PinotDB",
    selectServicePath: "/images/v1.10/connectors/pinotdb/select-service.png",
    addNewServicePath: "/images/v1.10/connectors/pinotdb/add-new-service.png",
    serviceConnectionPath: "/images/v1.10/connectors/pinotdb/service-connection.png",
}
/%}

{% stepsContainer %}
{% extraContent parentTagName="stepsContainer" %}

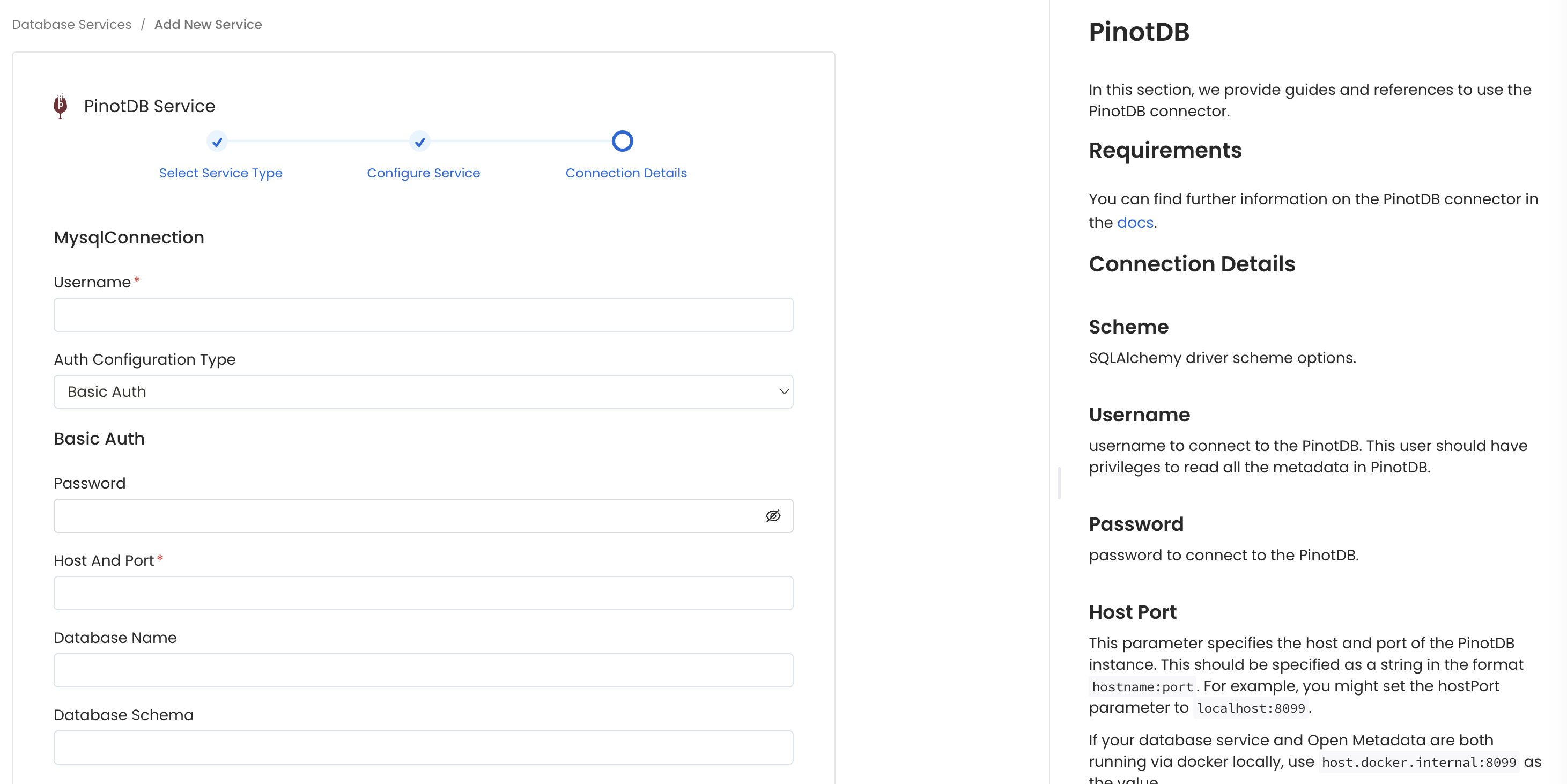

#### Connection Details

{% collateContent %}

{% note %}

When using a **Hybrid Ingestion Runner**, any sensitive credential fields—such as passwords, API keys, or private keys—must reference secrets using the following format: 

```
password: secret:/my/database/password
``` 

This applies **only to fields marked as secrets** in the connection form (these typically mask input and show a visibility toggle icon). 

For a complete guide on managing secrets in hybrid setups, see the [Hybrid Ingestion Runner Secret Management Guide](https://docs.getcollate.io/getting-started/day-1/hybrid-saas/hybrid-ingestion-runner#3.-manage-secrets-securely).

{% /note %}

{% /collateContent %}

- **Username**: Specify the User to connect to PinotDB. It should have enough privileges to read all the metadata.
- **Password**: Password to connect to PinotDB.
- **Host and Port**: Enter the fully qualified hostname and port number for your PinotDB deployment in the Host and Port field.  Unlike broker host, prefix http:// or https:// must be added to controller host. For example, pinot broker host can be set to `localhost:8099` and pinot controller host can be set to `http://localhost:9000`.
- **databaseName**: Optional name to give to the database in OpenMetadata. If left blank, we will use default as the database name.
- **databaseSchema**: databaseSchema of the data source. This is optional parameter, if you would like to restrict the metadata reading to a single databaseSchema. When left blank, OpenMetadata Ingestion attempts to scan all the databaseSchema.
- **caCertificate**: Provide the path to ssl ca file.
- **sslCertificate**: Provide the path to ssl client certificate file (ssl_cert).
- **sslKey**: Provide the path to ssl client certificate file (ssl_key).

{% partial file="/v1.10/connectors/database/advanced-configuration.md" /%}

{% /extraContent %}

{% partial file="/v1.10/connectors/test-connection.md" /%}

{% partial file="/v1.10/connectors/database/configure-ingestion.md" /%}

{% partial file="/v1.10/connectors/ingestion-schedule-and-deploy.md" /%}

{% /stepsContainer %}

{% partial file="/v1.10/connectors/database/related.md" /%}


Connect Apache Pinot to OpenMetadata with our comprehensive database connector guide. Setup instructions, configuration examples, and metadata extraction tips.

PinotDB

Ingestion Deployment

Run Connectors from the OpenMetadata UI

Run the Connector Externally

External Schedulers

Metadata Ingestion

1. Visit the Services Page

2. Create a New Service

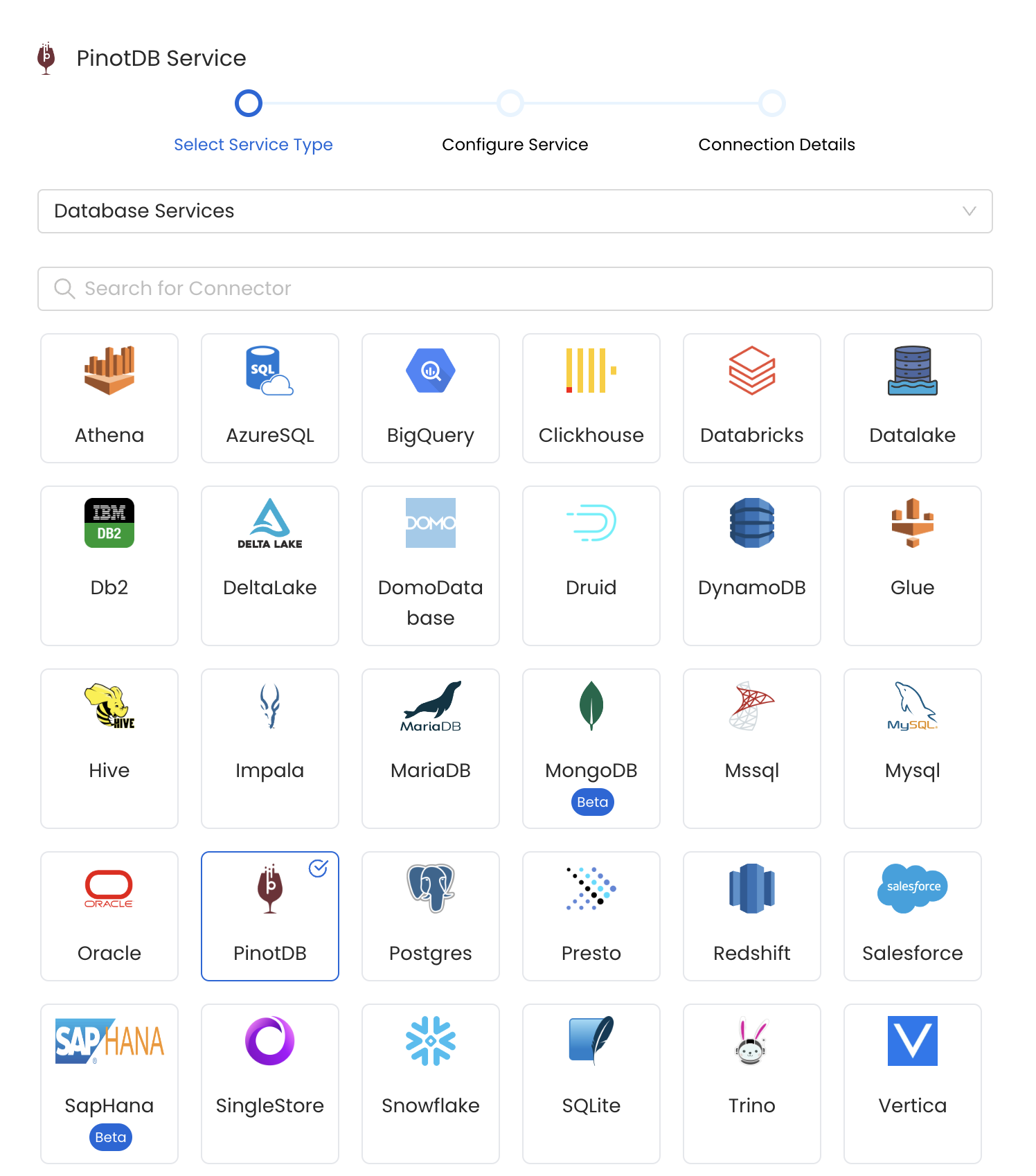

3. Select the Service Type

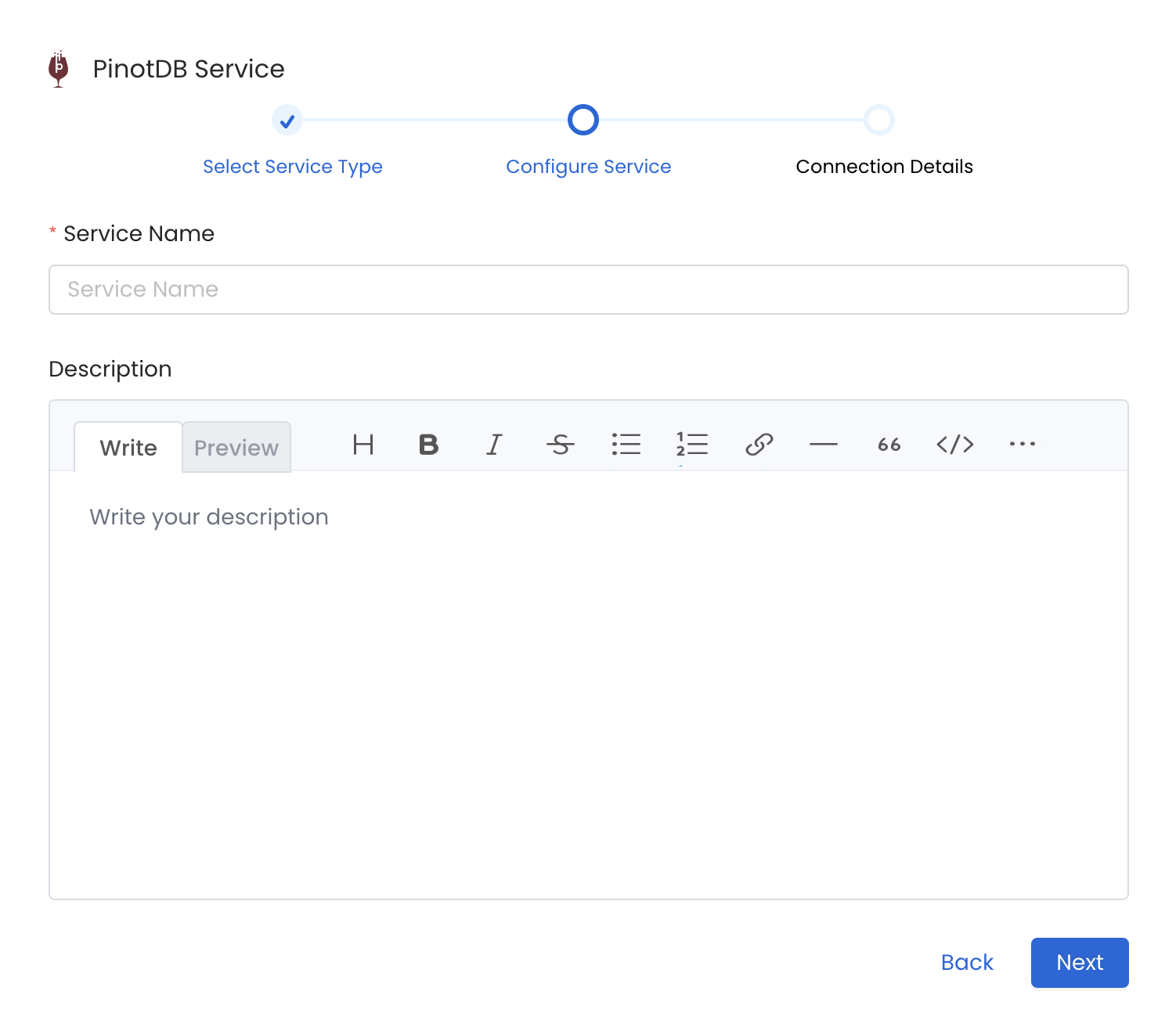

4. Name and Describe your Service
