Table Filter Patterns

Table filter patterns are used to control whether or not to include tables as part of metadata ingestion.
  • Include: Explicitly include tables by adding a list of comma-separated regular expressions to the Include field. OpenMetadata will include all tables with names matching one or more of the supplied regular expressions. All other tables will be excluded.
  • Exclude: Explicitly exclude tables by adding a list of comma-separated regular expressions to the Exclude field. OpenMetadata will exclude all tables with names matching one or more of the supplied regular expressions. All other tables will be included.
In OpenMetadata v1.5.x, when both include and exclude filters are applied, the system first processes the include filter, followed by the exclude filter.

​
Example 1

Snowflake_Prod # Snowflake Service Name
│
└─── SNOWFLAKE_SAMPLE_DATA # DB Name
│   │
│   └─── PUBLIC # Schema Name
│   │   │
│   │   └─── CUSTOMER # Table Name
│   │   │
│   │   └─── CUSTOMER_ADDRESS # Table Name
│   │   │
│   │   └─── CUSTOMER_DEMOGRAPHICS # Table Name
│   │   │
│   │   └─── CALL_CENTER # Table Name
│   │
│   └─── INFORMATION # Schema Name
│       │
│       └─── ORDERS # Table Name
│       │
│       └─── REGION # Table Name
│       │
│       └─── CUSTOMER # Table Name
│
└─── SNOWFLAKE # DB Name
    │
    └─── PUBLIC # Schema Name
        │
        └─── CUSTOMER # Table Name
In this example we want to ingest table with name CUSTOMER within any schema and database. In this case we need to apply include table filter pattern ^CUSTOMER$. This will result in ingestion of tables Snowflake_Prod.SNOWFLAKE_SAMPLE_DATA.PUBLIC.CUSTOMER, Snowflake_Prod.SNOWFLAKE_SAMPLE_DATA.INFORMATION.CUSTOMER & Snowflake_Prod.SNOWFLAKE.PUBLIC.CUSTOMER

​
Configuring Filters via UI for Example 1

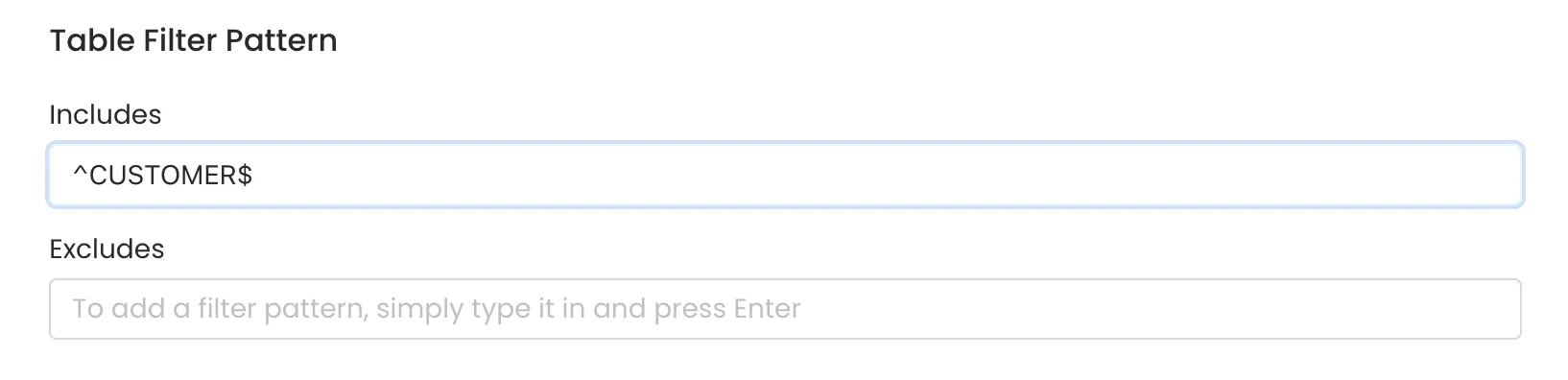

Table Filter Pattern Example 1

​
Configuring Filters via CLI for Example 1

sourceConfig:
  config:
    ...
    useFqnForFiltering: true
    tableFilterPattern:
      includes:
        - ^CUSTOMER$

​
Example 2

In this example we want to ingest table with name CUSTOMER within PUBLIC schema of any database. In this case we need to apply include table filter pattern .*\.PUBLIC\.CUSTOMER$ this will also require to set the useFqnForFiltering flag as true as we want to apply filter on FQN. This will result in ingestion of tables Snowflake_Prod.SNOWFLAKE_SAMPLE_DATA.PUBLIC.CUSTOMER & Snowflake_Prod.SNOWFLAKE.PUBLIC.CUSTOMER

​
Configuring Filters via UI for Example 2

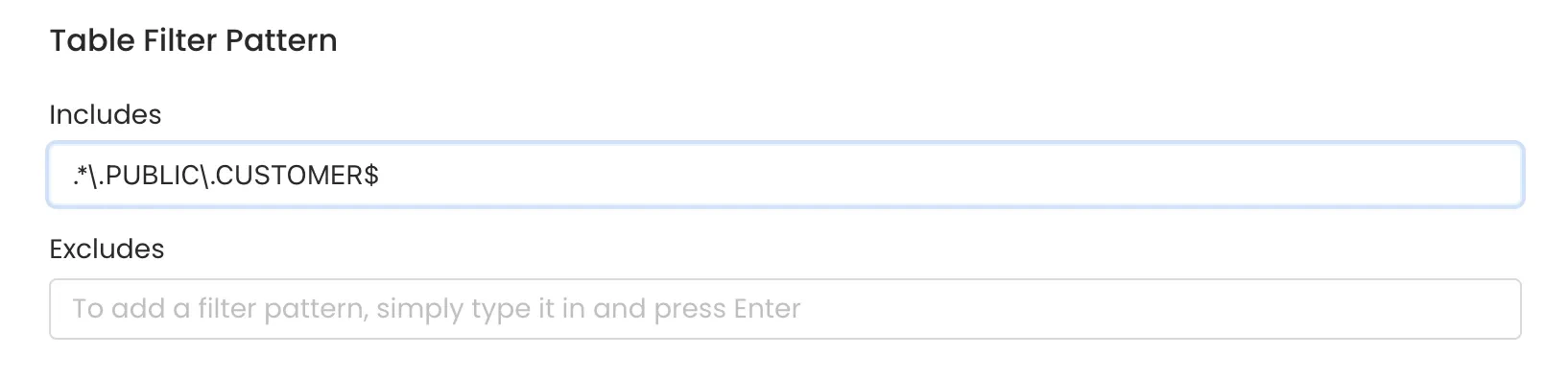

Table Filter Pattern Example 2

​
Configuring Filters via CLI for Example 2

sourceConfig:
  config:
    ...
    useFqnForFiltering: true
    tableFilterPattern:
      includes:
        - .*\.PUBLIC\.CUSTOMER$

​
Example 3

In this example, we aim to ingest a table named _delta_log/file.json within the session schema of any database. To achieve this, we need to configure the following filter patterns:
  • Include Table Filter Pattern: .*_delta_log/file\.json$
  • Schema Filter Pattern: session
The backslash \ is used as an escape character for the dot (.) in the pattern

​
Configuring Filters via UI for Example 3

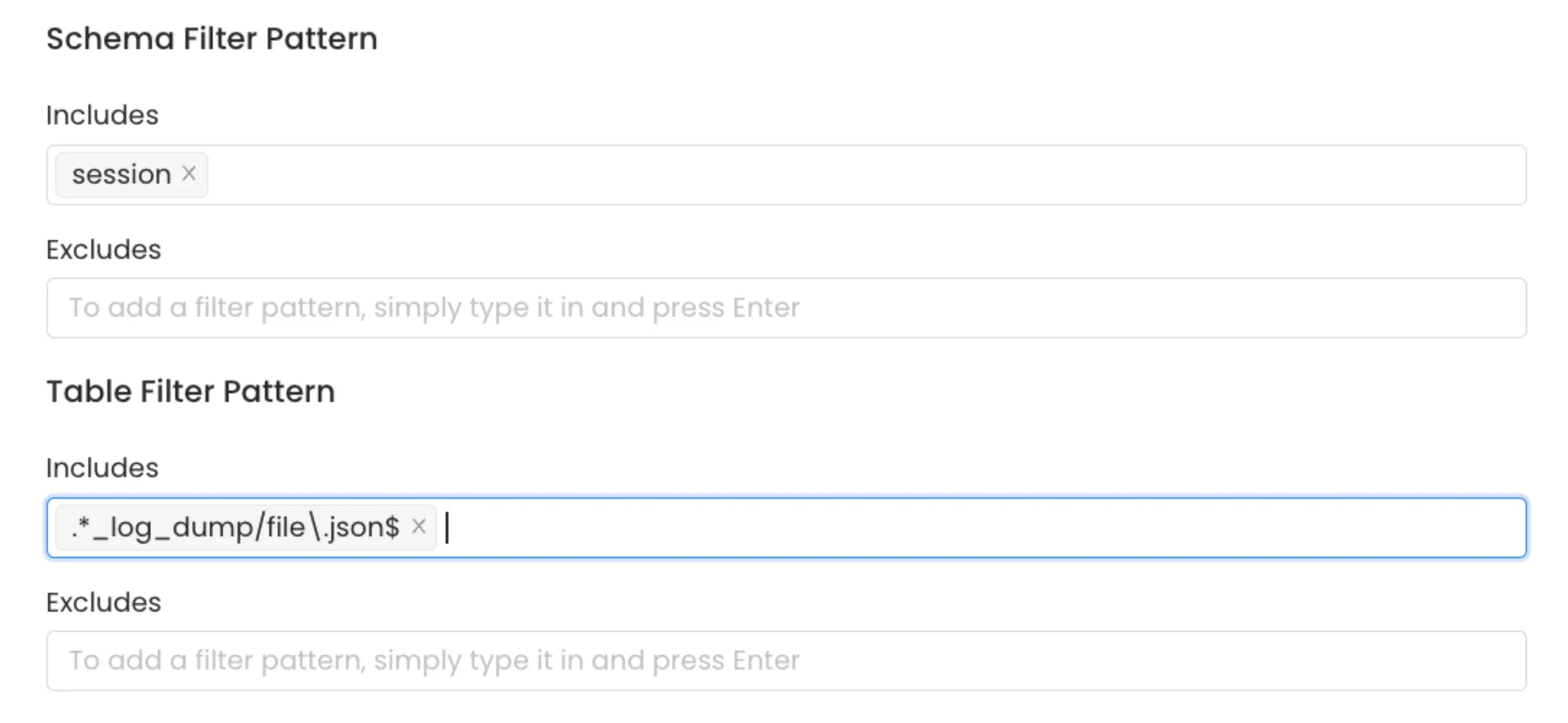

Table Filter Pattern Example 3

​
Configuring Filters via CLI for Example 3

sourceConfig:
  config:
    ...
    useFqnForFiltering: true
    schemaFilterPattern:
      includes:
        - session
    tableFilterPattern:
      includes:
        - .*_delta_log/file\.json$
