In this section, we provide guides and references to use the Tableau connector.
Supported Authentication Types:
  • Basic Auth — Username and password authentication
  • Access Token Auth — Personal access token name and secret for token-based authentication
Configure and schedule Tableau metadata and profiler workflows from the OpenMetadata UI:

​
Requirements

To ingest tableau metadata, minimum Site Role: Viewer is required for the tableau user. To create lineage between tableau dashboard and any database service via the queries provided from Tableau Metadata API, please enable the Tableau Metadata API for your tableau server. For more information on enabling the Tableau Metadata APIs follow the link here
  • If using a default site on Tableau Server, leave the Site URL and Site Name fields blank in the ingestion configuration.
  • Ensure that the Metadata API is enabled for the user performing the ingestion. If it is not enabled, ingestion may fail. Follow the official Tableau documentation to enable the Metadata API.
  • The minimum required role to retrieve owners is Site Admin Explorer.
  • As of OpenMetadata versions 1.7.4 and 1.7.5, the siteUrl field has been removed from the Tableau connector configuration. This change was intentional, as confirmed in the release commit.
  • To connect to a non-default Tableau site, use the siteName field instead. The Tableau Python SDK does not require siteUrl for authentication.
  • Ensure the siteName field is correctly populated (do not use *) to enable successful metadata ingestion for multi-site Tableau environments.

​
Entity Mapping

The Tableau connector maps Tableau assets to OpenMetadata entities as follows:
Tableau AssetOpenMetadata EntityDescription
Dashboard Views (sheetType=“dashboard”)DashboardTableau dashboard views are mapped to OpenMetadata Dashboard entities. These are the actual interactive dashboards in Tableau.
Sheet Views (worksheets, stories, etc.)ChartTableau worksheet views and other sheet types are mapped to OpenMetadata Chart entities.
WorkbooksProject HierarchyWorkbook information is preserved in the project field as {ProjectName}/{WorkbookName} to maintain the container relationship.
Data SourcesData ModelsTableau data sources are mapped to OpenMetadata Data Model entities.

​
Example Structure

Tableau Structure:
Project: Sales Team
└── Workbook: Sales Analysis
    ├── Dashboard: Revenue Overview (sheetType="dashboard")
    ├── Worksheet: Monthly Sales (sheetType="worksheet")
    └── Story: Sales Story (sheetType="story")
OpenMetadata Structure:
Dashboard: "Revenue Overview" (Project: "Sales Team/Sales Analysis")
├── Chart: "Monthly Sales"
└── Chart: "Sales Story"
This mapping ensures that:
  • Tableau dashboards appear as OpenMetadata dashboards (not charts)
  • Workbook context is preserved in the project hierarchy
  • URLs point directly to the specific dashboard views
  • Chrome Extension compatibility is maintained

​
Metadata Ingestion

​

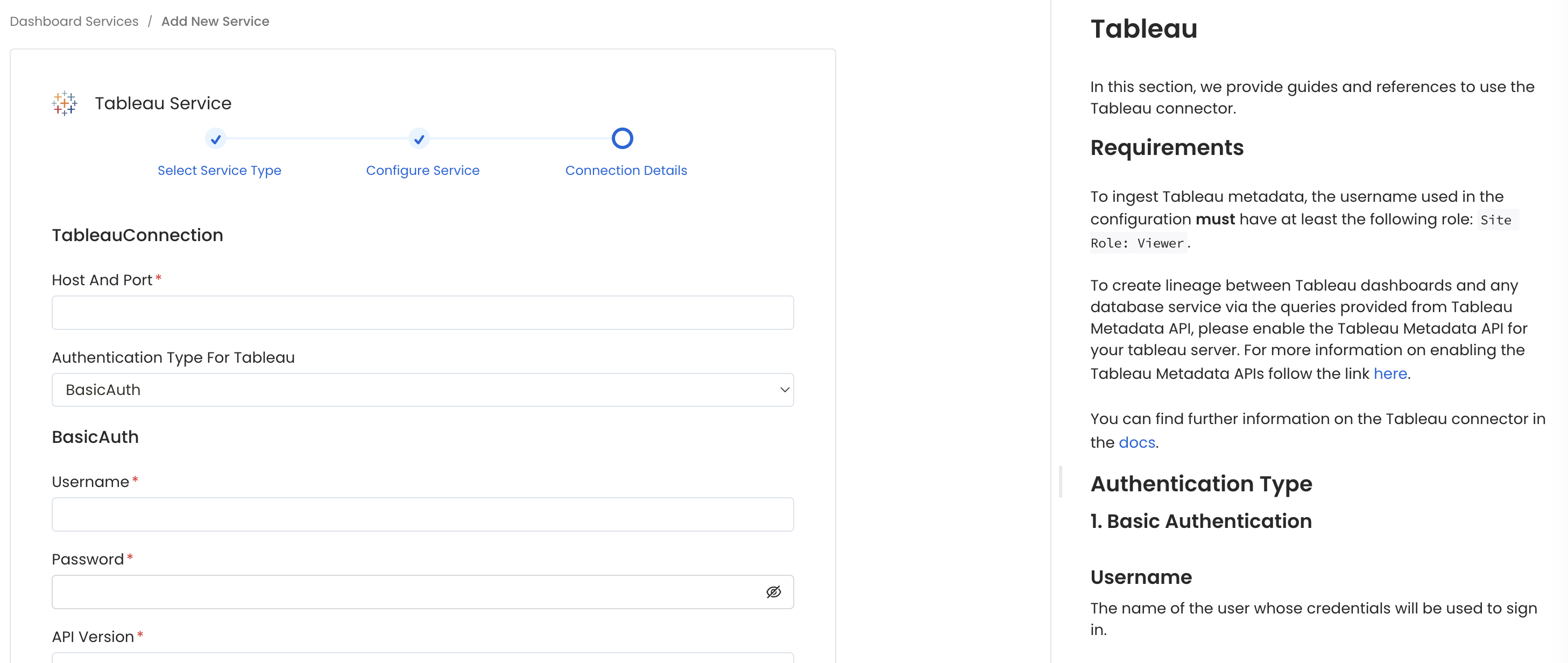

Connection Details

1

Connection Details

When using a Hybrid Ingestion Runner, any sensitive credential fields—such as passwords, API keys, or private keys—must reference secrets using the following format:
password: secret:/my/database/password
This applies only to fields marked as secrets in the connection form (these typically mask input and show a visibility toggle icon). For a complete guide on managing secrets in hybrid setups, see the Hybrid Ingestion Runner Secret Management Guide.
  • Host and Port: URL or IP address of your installation of Tableau Server.
  • Authentication Types:
    1. Basic Authentication
    • Username: The name of the user whose credentials will be used to sign in.
    • Password: The password of the user.
    1. Access Token Authentication
    • Personal Access Token: The personal access token name. For more information to get a Personal Access Token please visit this link.
    • Personal Access Token Secret: The personal access token value. For more information to get a Personal Access Token please visit this link.
  • API Version: Tableau API version. If not provided, the version will be used from the Tableau server automatically. A list of versions can be found here.
  • Site Name: This corresponds to the contentUrl attribute in the Tableau REST API. The site_name is the portion of the URL that follows the /site/ in the URL.
  • Pagination Limit: The pagination limit will be used while querying the Tableau Graphql endpoint to get the data source information.
  • Proxy URL: Optional proxy URL for the Tableau server. If not provided, the hostPort will be used. This is used to generate the dashboard and chart URLs.

​
Site Name

​
1. Service Connection for Tableau Cloud

If you’re connecting to a cloud Tableau instance, add the Site Name with your site name.

​
2. Service Connection for a default tableau site

For a default tableau site the Site Name field should be kept empty.

​
3. Service Connection for a non-default tableau site

For a non-default tableau site the Site Name field is required.
If https://xxx.tableau.com/#/site/MarketingTeam/home represents the homepage url for your tableau site, the MarketingTeam from the url should be entered in the Site Name field.

​
Authentication Type

​
1. Basic Authentication

We need the name of the user whose credentials will be used to sign in and the password of the user.

​
2. Access Token Authentication

In this case, the personal access token name and the personal access token value are required. For more information to get a Personal Access Token please visit this link.
2

Test the Connection

Once the credentials have been added, click on Test Connection and Save the changes.Test Connection
3

Configure Metadata Ingestion

After adding and testing the dashboard service, configure the metadata ingestion pipeline. To configure, follow the steps below:
  1. Navigate to Settings > Services > Dashboards.
  2. On the Dashboards services page, click the service you’ve added.
  3. Go to the Agents tab, and then click Add Agent > Add Metadata Agent.
  4. Configure the ingestion details. See Metadata Ingestion Options.
Configure Metadata Ingestion

​
Metadata Ingestion Options

  • Name: This field is the name of the ingestion pipeline. Customize it or use the generated name.
  • Dashboard Filter Pattern (Optional): Use it to control whether to include dashboards as part of metadata ingestion.
    • Include: Explicitly include dashboards by adding comma-separated regular expressions to the ‘Include’ field. OpenMetadata will include all dashboards with names matching one or more of the supplied regular expressions. All other dashboards will be excluded.
    • Exclude: Explicitly exclude dashboards by adding comma-separated regular expressions to the ‘Exclude’ field. OpenMetadata will exclude all dashboards with names matching one or more of the supplied regular expressions. All other dashboards will be included.
  • Chart Filter Pattern (Optional): Use it to control whether to include charts as part of metadata ingestion.
    • Include: Explicitly include charts by adding comma-separated regular expressions to the ‘Include’ field. OpenMetadata will include all charts with names matching one or more of the supplied regular expressions. All other charts will be excluded.
    • Exclude: Explicitly exclude charts by adding comma-separated regular expressions to the ‘Exclude’ field. OpenMetadata will exclude all charts with names matching one or more of the supplied regular expressions. All other charts will be included.
  • Data Model Filter Pattern (Optional): Use it to control whether to include data models as part of metadata ingestion.
    • Include: Explicitly include data models by adding comma-separated regular expressions to the ‘Include’ field. OpenMetadata will include all data models with names matching one or more of the supplied regular expressions. All other data models will be excluded.
    • Exclude: Explicitly exclude data models by adding comma-separated regular expressions to the ‘Exclude’ field. OpenMetadata will exclude all data models with names matching one or more of the supplied regular expressions. All other data models will be included.
  • Project Filter Pattern: Filter the dashboards, charts, and data sources by projects. Note that all of them support regex as include or exclude. For example, “My project, My proj.*, .*Project”.
    We filter the projects by concatenating the entire project hierarchy using dot notation (for example, Project1.NestedProjectA.OtherProject). Make sure the regex filter pattern accounts for this fully-qualified format.
  • Enable Debug Log: Enable this toggle to use debug-level logging.
Metadata Ingestion Option 1
  • Lineage Information (Optional): Configure this section to enable lineage between your dashboards and the database tables they are built on. OpenMetadata uses the database service name to match and draw the lineage path from table to dashboard.
    • Db Service Prefixes: Enter one or more service path prefixes to tell OpenMetadata where to look for the source tables used by your dashboards. Supported formats:
      • DBServiceName—matches all tables in the service
      • DBServiceName.DatabaseName—matches tables in a specific database
      • DBServiceName.DatabaseName.SchemaName—matches tables in a specific schema
      • DBServiceName.DatabaseName.SchemaName.TableName—matches a specific table
  • Query Parser Configuration: Controls how OpenMetadata parses SQL queries to extract lineage. Use this to select the SQL parser that best fits your data source’s dialect.
    • Query Parser Type: Choose the SQL parser for lineage extraction:
      • Auto (default): Automatically tries SqlGlot first, falls back to SqlFluff, then SqlParse. Recommended for best results.
      • SqlGlot: High-performance parser with good dialect support. Falls back to SqlParse on failure.
      • SqlFluff: Comprehensive but slower parser with strong dialect support. Falls back to SqlParse on failure.
  • Include Current Owners: Enable this toggle to control whether to include owners for the ingested entity if the owner email matches a user stored in the OpenMetadata server as part of metadata ingestion. If the ingested entity already exists and has an owner, the owner will not be overwritten.
  • Mark Deleted Dashboards: Optional configuration to soft delete dashboards in OpenMetadata if the source dashboards are deleted. After deleting, all associated entities like lineage and other related data for that dashboard will be deleted.
  • Mark Deleted Data Models: Optional configuration to soft delete data models in OpenMetadata if the source data models are deleted. After deleting, all associated entities with that data model will be deleted.
  • Mark Deleted Charts: Optional configuration to soft delete charts in OpenMetadata if the source charts are deleted. After deleting, all associated entities with that chart will be deleted.
  • Include Tags: Enable this toggle to control whether to include tags in metadata ingestion.
  • Include Data Models: Enable this toggle to control whether to include data models as part of metadata ingestion.
  • Include Draft Dashboard: Enable this toggle to include draft dashboards. By default, this is enabled.
  • Include Usage: Enable this toggle to control whether to include usage data as part of metadata ingestion.
  • Override Metadata: Enable this toggle to control whether to override the existing metadata in the OpenMetadata server with the metadata fetched from the source. If enabled, the metadata fetched from the source will override the existing metadata in OpenMetadata. If disabled, only fields that have no value in OpenMetadata will be updated. This is applicable for fields like description, tags, owner, and displayName.
  • Override Lineage: Enable this toggle to control whether to override the existing lineage in OpenMetadata with the lineage fetched from the source. If enabled, existing lineage will be replaced. If disabled, new lineage edges will be added without removing existing ones.
Metadata Ingestion Option 2
4

Schedule the Ingestion and Deploy

Scheduling can be set up at an hourly, daily, weekly, or manual cadence. The timezone is in UTC. Select a Start Date to schedule for ingestion. It is optional to add an End Date.Review your configuration settings. If they match what you intended, click Deploy to create the service and schedule metadata ingestion.If something doesn’t look right, click the Back button to return to the appropriate step and change the settings as needed.After configuring the workflow, you can click on Deploy to create the pipeline.Schedule the Workflow
5

View the Ingestion Pipeline

Once the workflow has been successfully deployed, you can view the Ingestion Pipeline running from the Service Page.View Ingestion Pipeline
If AutoPilot is enabled, workflows like usage tracking, data lineage, and similar tasks will be handled automatically. Users don’t need to set up or manage them - AutoPilot takes care of everything in the system.

​

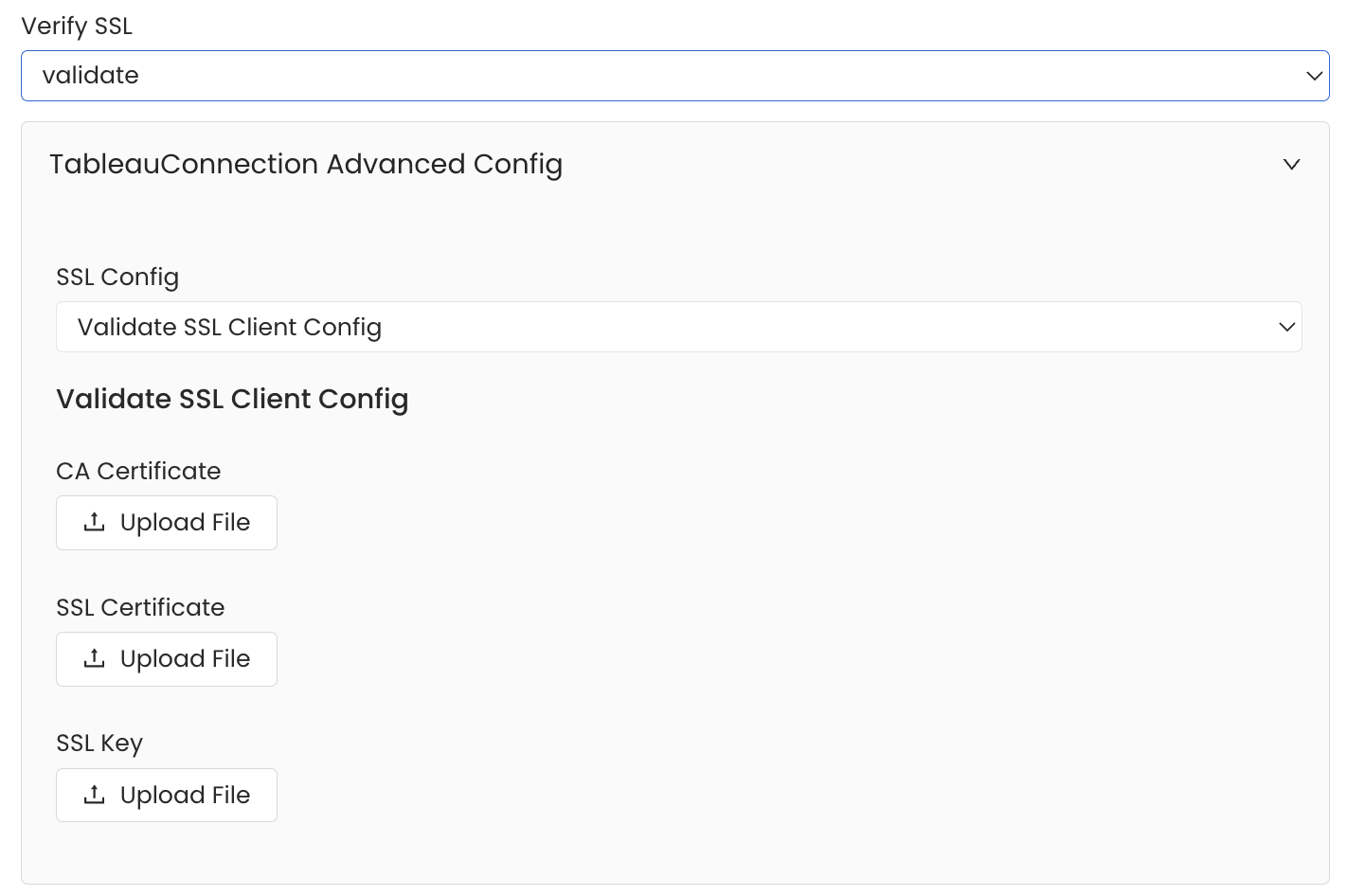

Securing Tableau Connection with SSL in OpenMetadata

To establish secure connections between OpenMetadata and Tableau, navigate to the Advanced Config section. Here, you can provide the CA certificate used for SSL validation by specifying the caCertificate. Alternatively, if both client and server require mutual authentication, you’ll need to use all three parameters: ssl_key, ssl_cert, and caCertificate. In this case, ssl_cert is used for the client’s SSL certificate, ssl_key for the private key associated with the SSL certificate, and caCertificate for the CA certificate to validate the server’s certificate. SSL Configuration

​
Lineage

Lineage in OpenMetadata shows you which database tables power each dashboard. When lineage is set up, you can trace any dashboard back to the exact source tables in your database. There is no separate lineage agent or lineage pipeline—lineage is collected as part of the same metadata ingestion workflow. Configuring the Db Service Prefixes field (covered below) is optional but recommended — it restricts table matching to specific database services. If left blank, OpenMetadata attempts to match source tables across all ingested database services. lineage Information

​
How to Set Up Lineage

  1. Go to Settings > Services > Dashboards.
  2. Click the dashboard service you’ve added.
  3. Go to the Agents tab, then select Add Agent > Add Metadata Agent. If a metadata agent already exists, select the three-dot context menu (⋮) next to it and select Edit.
  4. In the Configure Ingestion step, scroll down to the Lineage Information section.
  5. Optionally enter one or more database service names in the Db Service Prefixes field to restrict table matching to specific services. If left blank, OpenMetadata searches across all ingested database services.
The Db Service Prefixes field helps OpenMetadata locate the source tables and draw the lineage path from table to dashboard. Examples of valid entries:
What you enterWhat it matches
SnowflakeProdAll tables in the Snowflake service named SnowflakeProd
SnowflakeProd.sales_dbTables in the sales_db database within SnowflakeProd
SnowflakeProd.sales_db.publicTables in the public schema within sales_db
If your dashboards pull data from multiple database services, add each service as a separate entry in the Db Service Prefixes field.

​
Tableau Metadata API requirement

Make sure the Tableau Metadata API is enabled on your Tableau server. OpenMetadata uses this API to find out which database tables each dashboard is built on. Without it, lineage will not be collected.
