Troubleshooting

Workflow Deployment Error

If there were any errors during the workflow deployment process, the Ingestion Pipeline Entity will still be created, but no workflow will be present in the Ingestion container.

• You can then Edit the Ingestion Pipeline and Deploy it again.
• From the Connection tab, you can also Edit the Service if needed.

Connector Debug Troubleshooting

This section provides instructions to help resolve common issues encountered during connector setup and metadata ingestion in OpenMetadata. Below are some of the most frequently observed troubleshooting scenarios.

How to Enable Debug Logging for Any Ingestion

To enable debug logging for any ingestion workflow in OpenMetadata:

1. Navigate to Services Go to Settings > Services > Service Type (e.g., Database) in the OpenMetadata UI.

2. Select a Service Choose the specific service for which you want to enable debug logging.

Select a Service

3. Access Ingestion Tab Go to the Ingestion tab and click the three-dot menu on the right-hand side of the ingestion type, and select Edit.

Access Agents Tab

4. Enable Debug Logging In the configuration dialog, enable the Debug Log option and click Next.

Enable Debug Logging

5. Schedule and Submit Configure the schedule if needed and click Submit to apply the changes.

Schedule and Submit

Permission Issues

If you encounter permission-related errors during connector setup or metadata ingestion, ensure that all the prerequisites and access configurations specified for each connector are properly implemented. Refer to the connector-specific documentation to verify the required permissions.

Databricks Connection Details

Authentication Methods

Databricks connector supports three authentication methods. Choose the one that best fits your security requirements:

1. Personal Access Token (PAT)

2. Databricks OAuth (Service Principal)

3. Azure AD Setup

Getting Connection Details

Here are the steps to get hostPort, httpPath and authentication credentials:

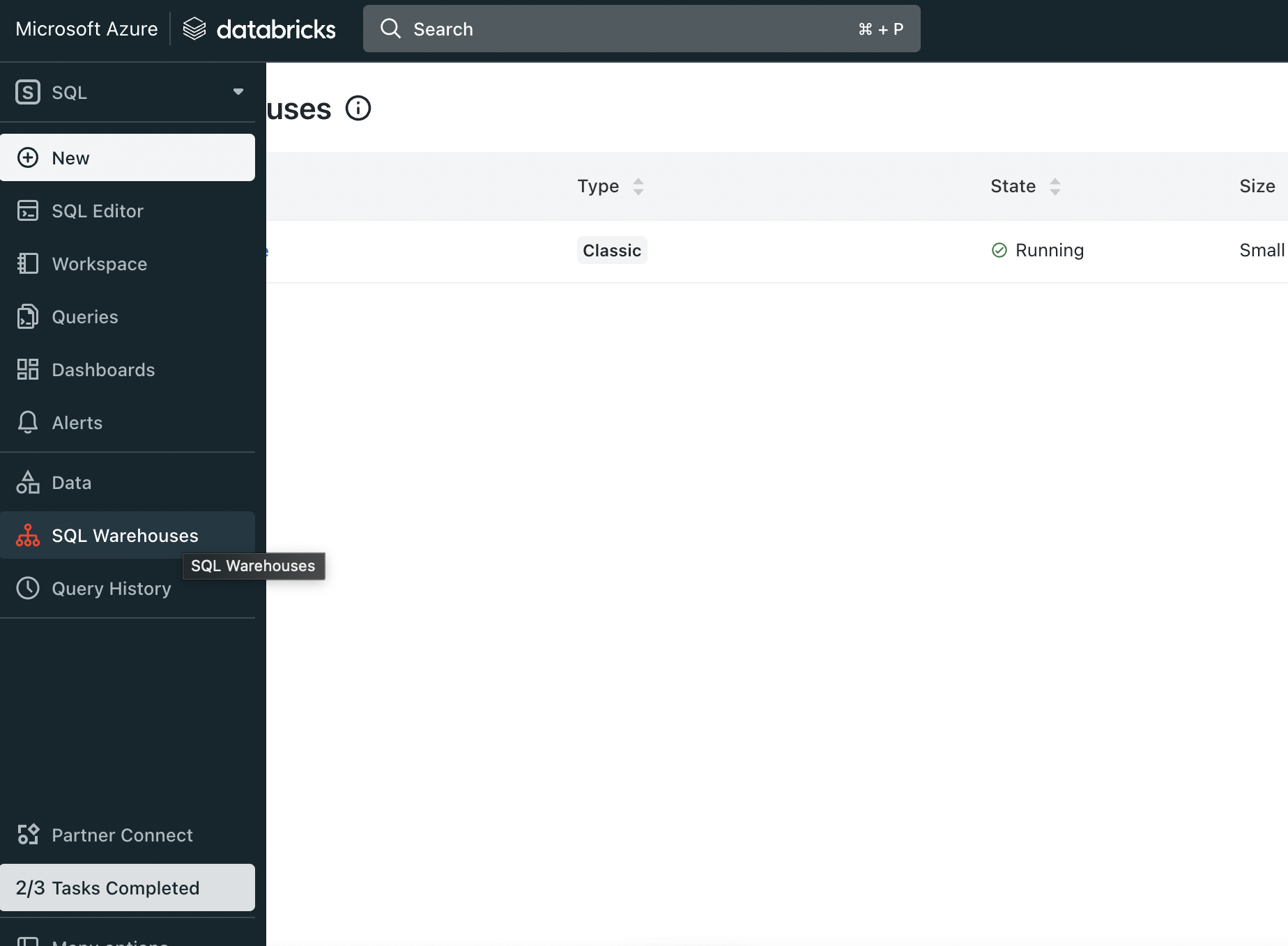

First login to Azure Databricks and from side bar select SQL Warehouse (In SQL section)

Select Sql Warehouse

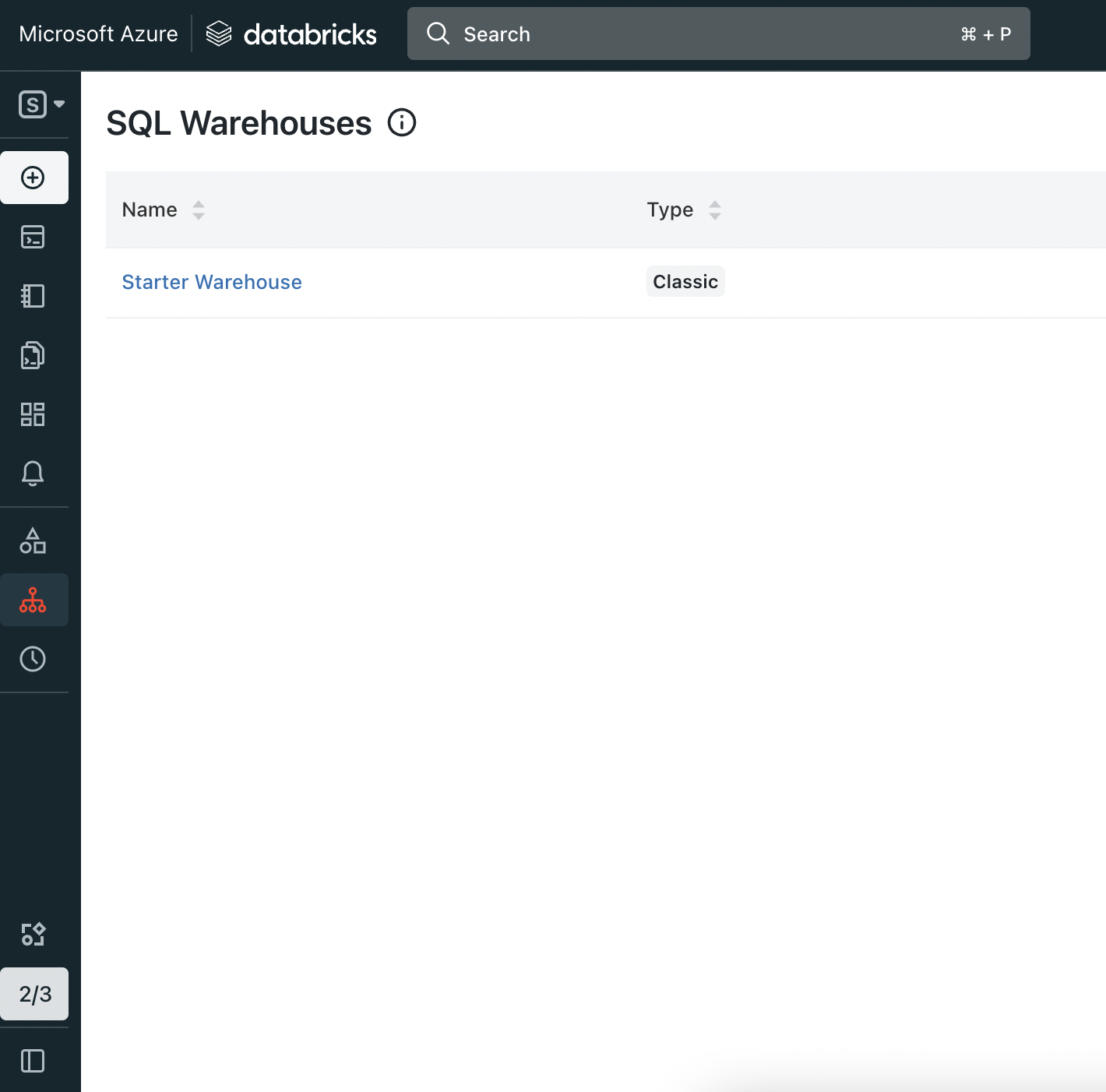

Now click on sql Warehouse from the SQL Warehouses list.

Open Sql Warehouse

Now inside that page go to Connection details section. In this page Server hostname and Port is your hostPort, HTTP path is your http_path.

Connection details

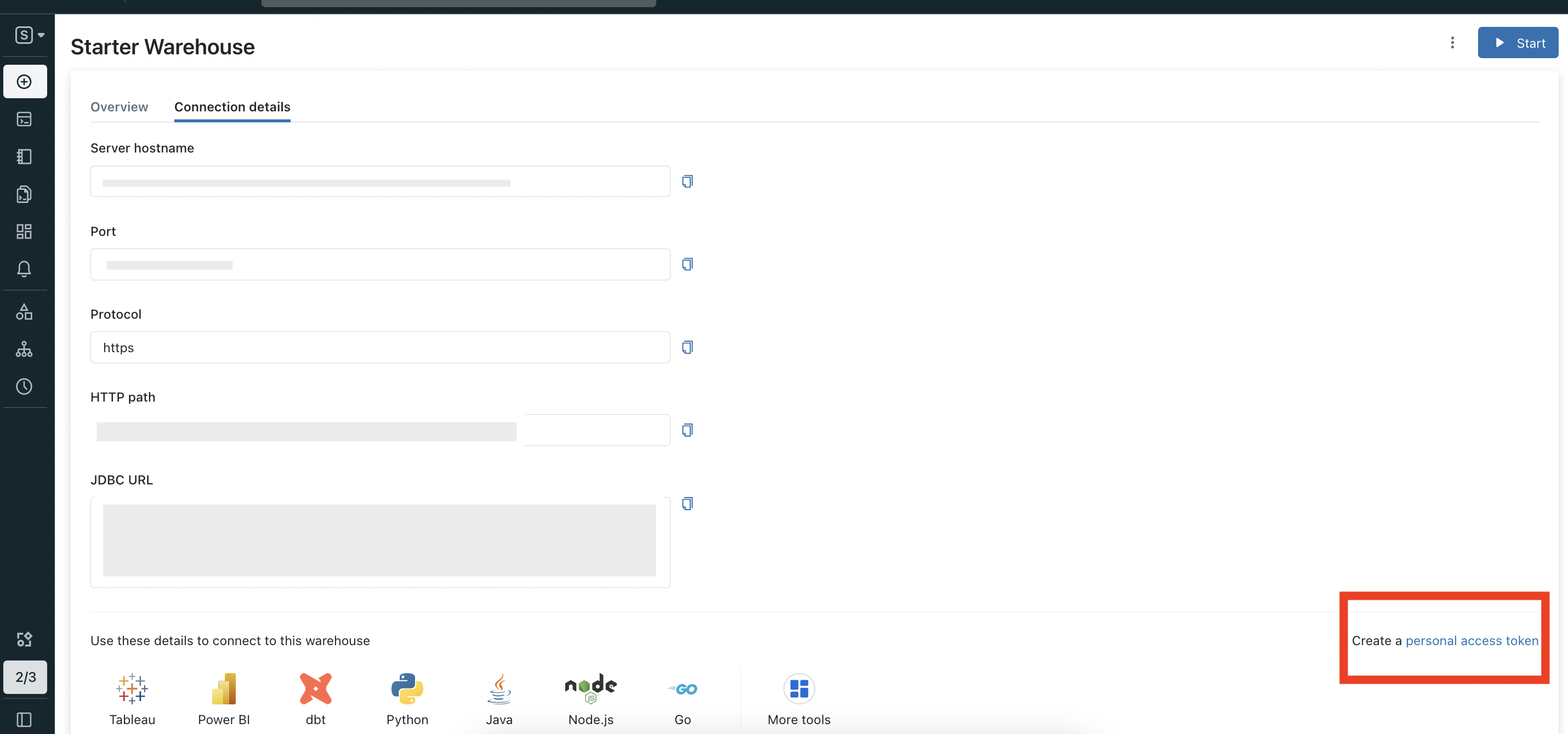

In Connection details section page click on Create a personal access token.

Open create token

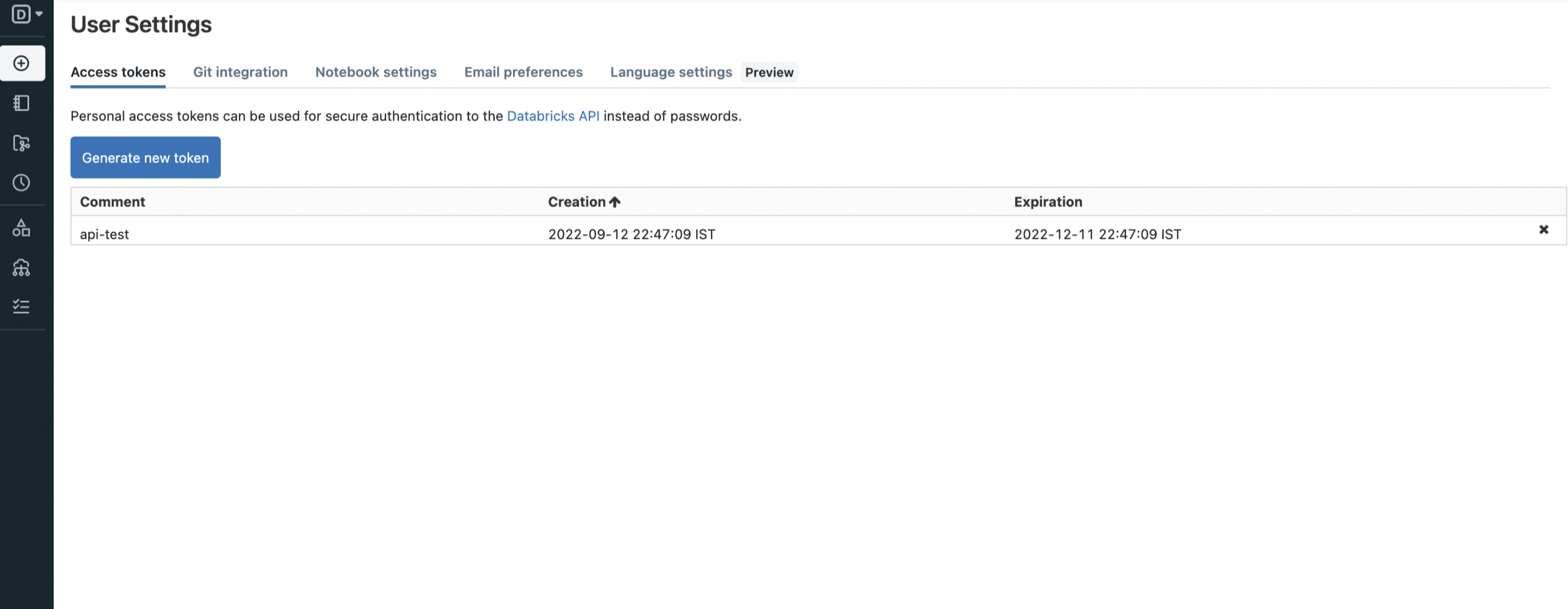

Now In this page you can create new token.

Generate token

Getting Service Principal Credentials

For Databricks OAuth (All Platforms)

1. Navigate to your Databricks Account Console
2. Go to Settings → Identity and access → Service Principals → Add Service Principal
3. Note down the Application ID (this is your clientId)
4. Click Generate Secret and save the secret (this is your clientSecret)

For Azure AD Setup (Azure Databricks Only)

1. Go to Azure Portal → Azure Active Directory
2. Navigate to Microsoft Entra ID → App registrations → New registration
3. After registration, note:
   • Application (client) ID (this is your azureClientId)
   • Directory (tenant) ID (this is your azureTenantId)
4. Go to Certificates & secrets → New client secret
5. Create and save the secret value (this is your azureClientSecret)
6. Navigate to your Azure Databricks Account Console
7. Go to Settings → Identity and access → Service Principals → Add Service Principal
8. Select Microsoft Entra ID managed option and enter your azureClientId

Common Issues

Authentication Failures

• PAT Issues: Ensure token hasn't expired (max 90 days lifetime)
• Service Principal: Verify the Service Principal has necessary permissions
• Azure AD: Check if Azure Databricks workspace is configured for Azure AD authentication

Permission Errors

• Ensure proper GRANT statements have been executed for your authentication method
