Usage Workflow

Learn how to configure the Usage workflow from the UI to ingest Query history data from your data sources.

This workflow is available ONLY for the following connectors:

If your database service is not yet supported, you can use this same workflow by providing a Query Log file!

Learn how to do so 👇

Once the metadata ingestion runs correctly and we are able to explore the service Entities, we can add Query Usage information.

This will populate the Queries tab from the Table Entity Page.

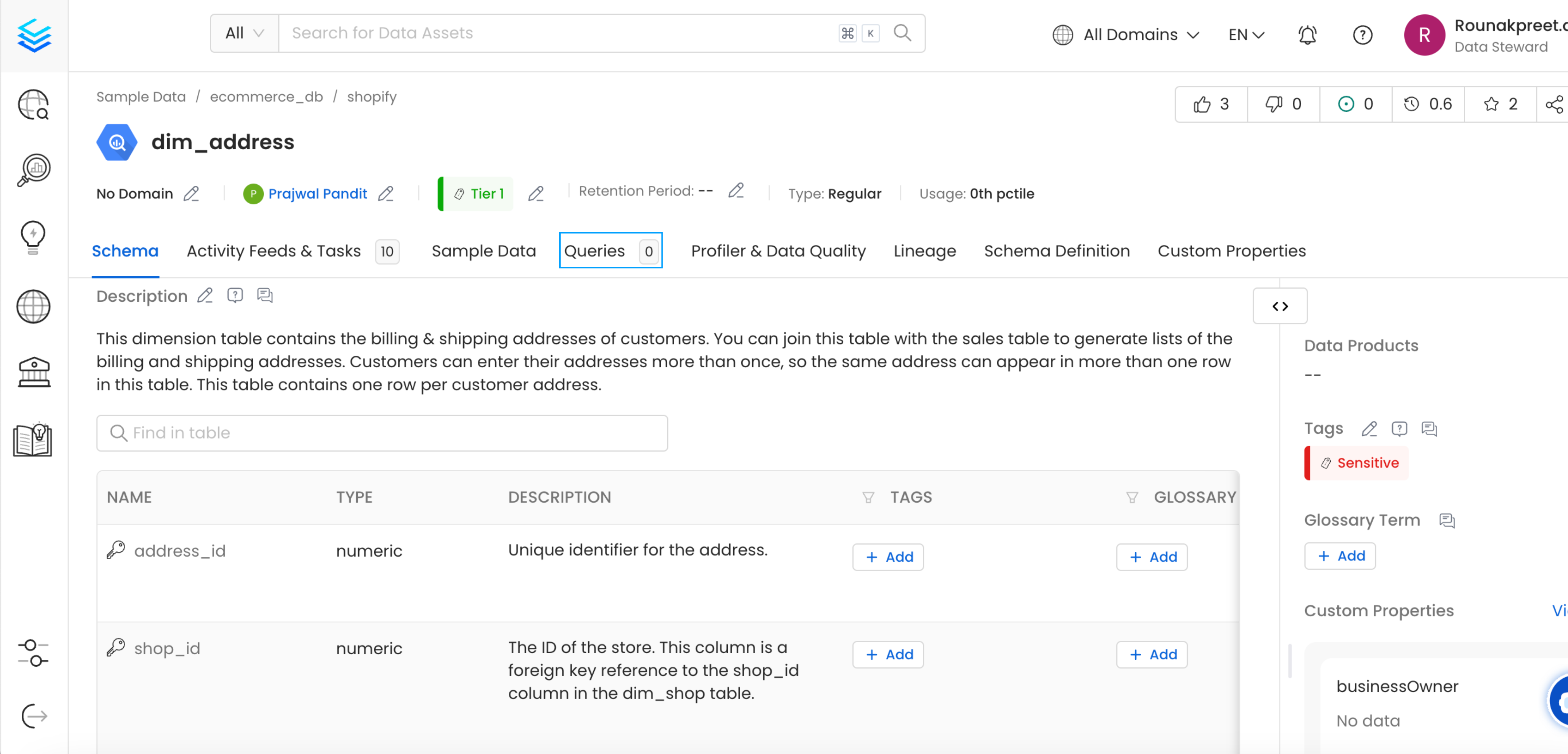

table-entity-page

Table Entity Page

We can create a workflow that will obtain the query log and table creation information from the underlying database and feed it to OpenMetadata. The Usage Ingestion will be in charge of obtaining this data.

From the Service Page, go to the Ingestions tab to add a new ingestion and click on Add Usage Ingestion.

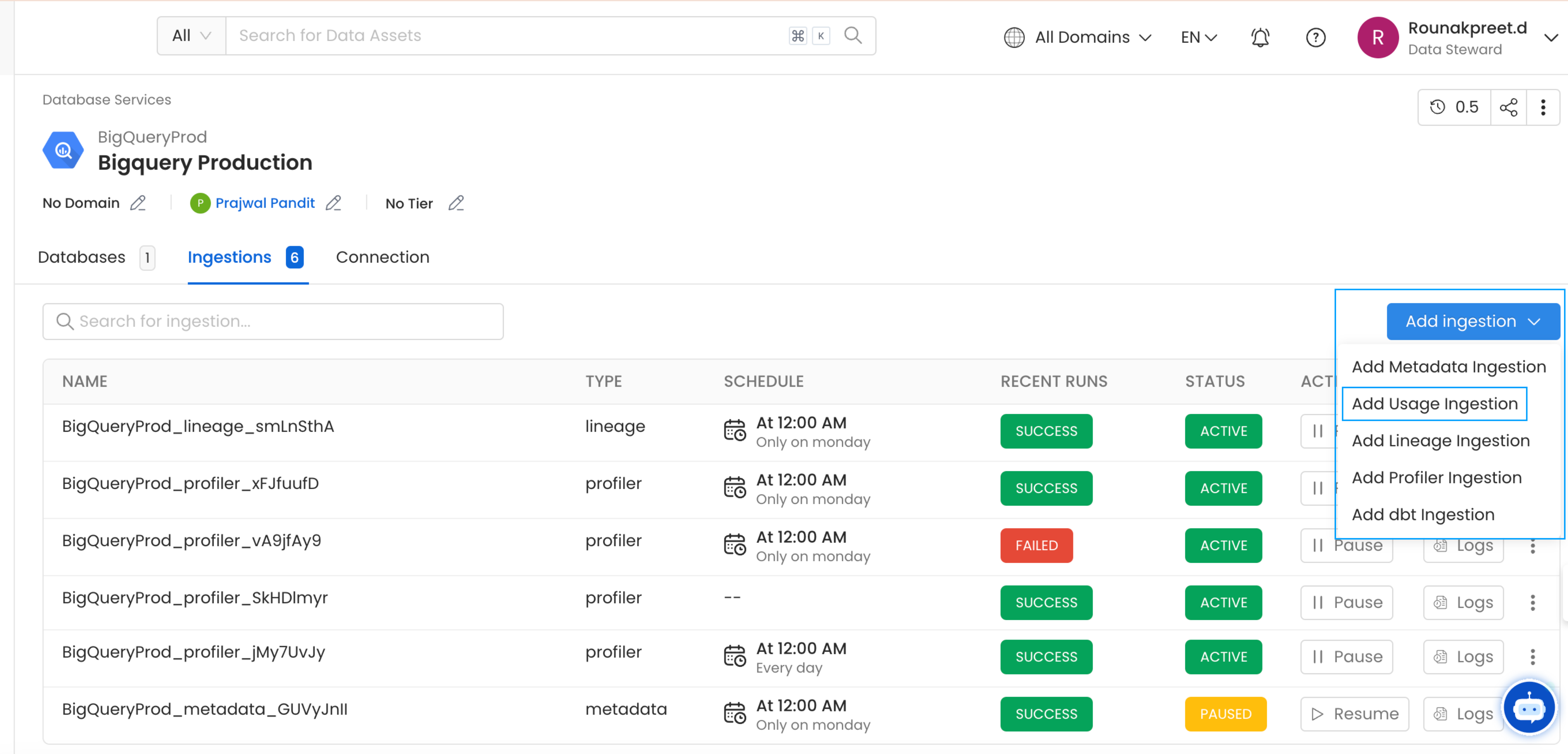

add-ingestion

Add Ingestion

Here you can enter the Usage Ingestion details:

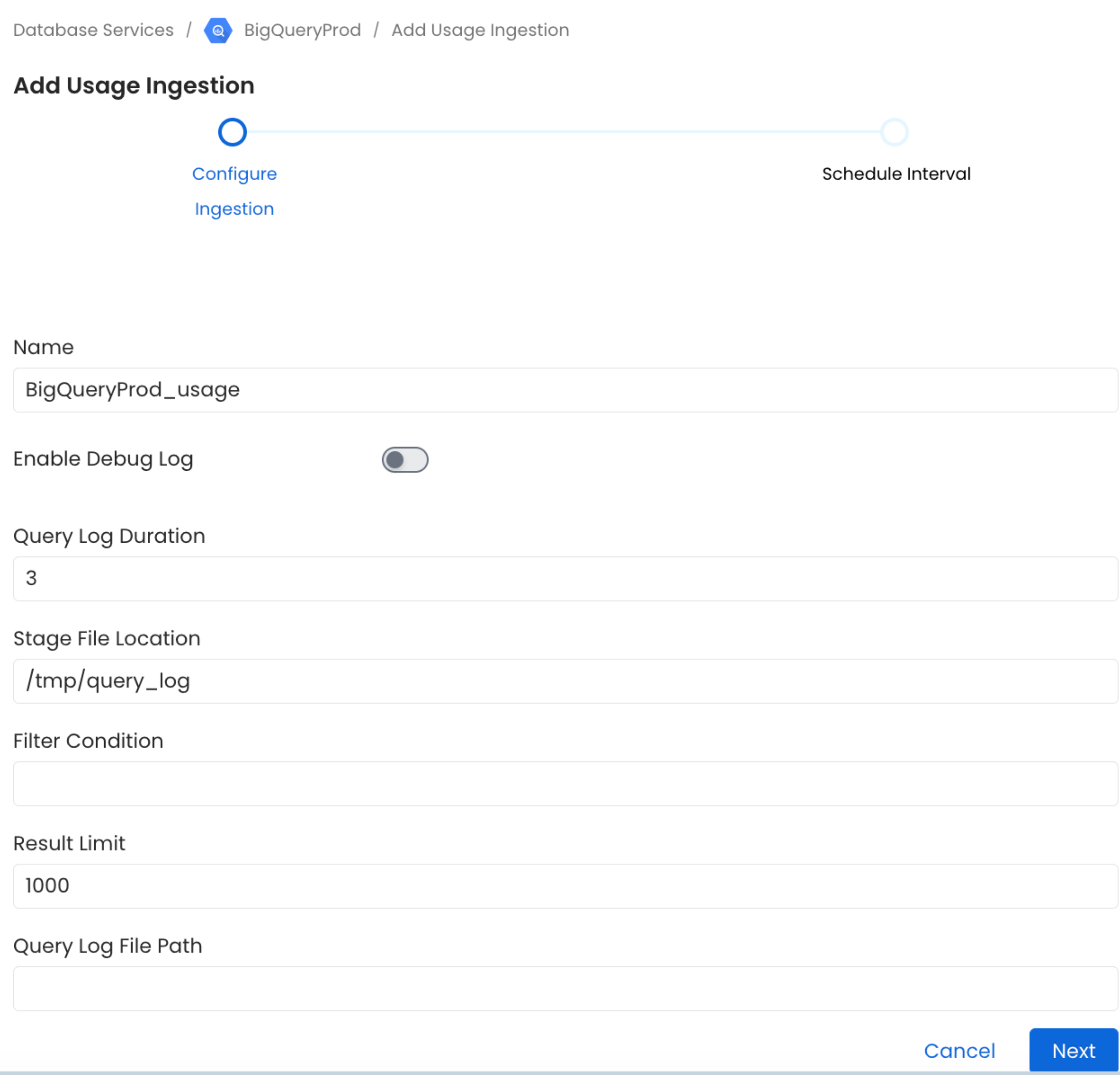

configure-usage-ingestion

Configure the Usage Ingestion

Query Log Duration

Specify the duration in days for which the usage should capture usage data from the query logs. For example, if you specify 2 as the value for the duration, the data usage will capture usage information for 48 hours prior to when the ingestion workflow is run.

Stage File Location

Mention the absolute file path of the temporary file name to store the query logs before processing.

Result Limit

Set the limit for the query log results to be run at a time.

After clicking Next, you will be redirected to the Scheduling form. This will be the same as the Metadata Ingestion. Select your desired schedule and click on Deploy to find the usage pipeline being added to the Service Ingestions.

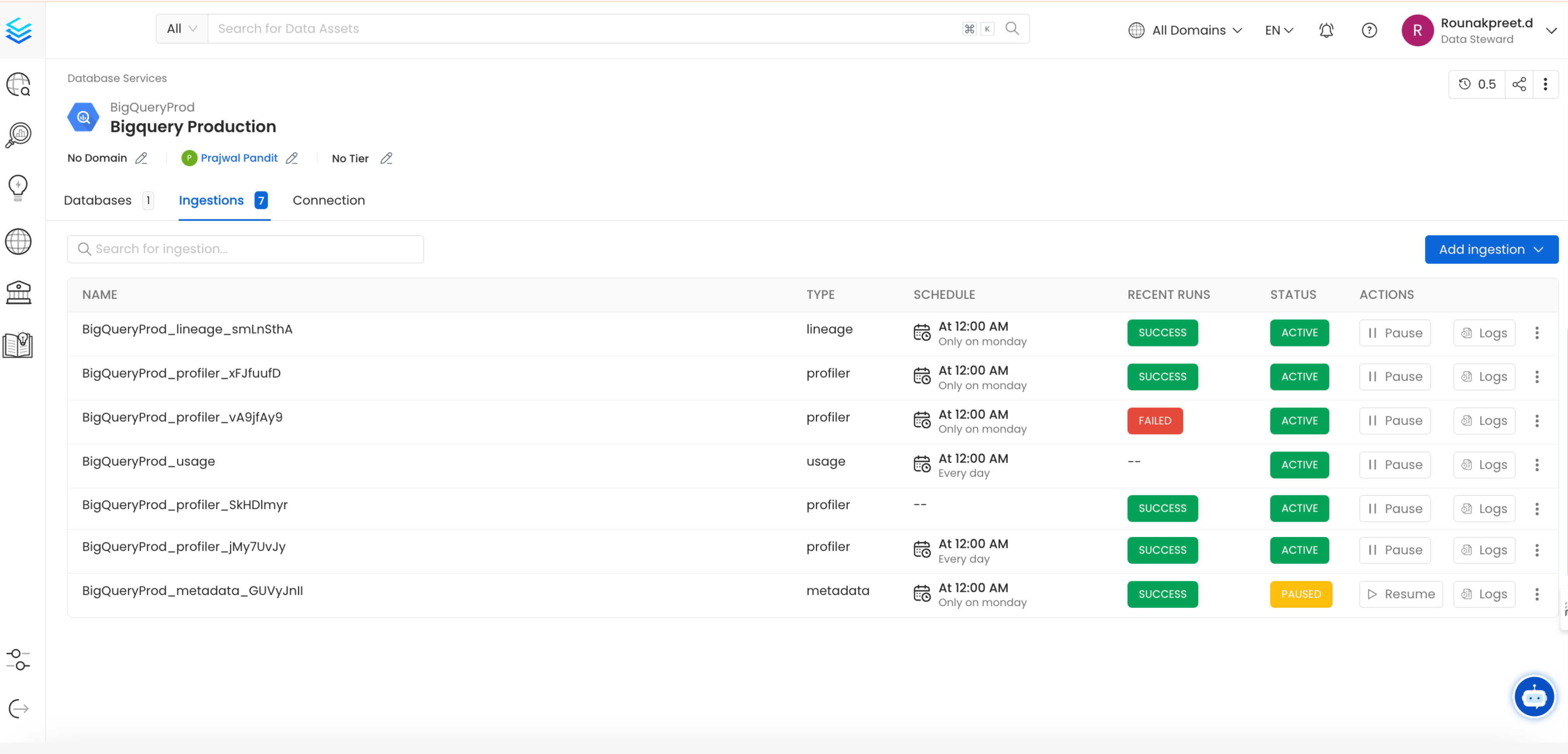

schedule-and-deploy

View Service Ingestion pipelines

In the connectors section we showcase how to run the metadata ingestion from a JSON/YAML file using the Airflow SDK or the CLI via metadata ingest. Running a usage workflow is also possible using a JSON/YAML configuration file.

This is a good option if you wish to execute your workflow via the Airflow SDK or using the CLI; if you use the CLI a usage workflow can be triggered with the command metadata usage -c FILENAME.yaml. The serviceConnection config will be specific to your connector (you can find more information in the connectors section), though the sourceConfig for the usage will be similar across all connectors.

The Query Usage workflow will be using the query-parser processor.

After running a Metadata Ingestion workflow, we can run Query Usage workflow. While the serviceName will be the same to that was used in Metadata Ingestion, so the ingestion bot can get the serviceConnection details from the server.

This is a sample config for BigQuery Usage:

You can find all the definitions and types for the sourceConfig here.

queryLogDuration: Configuration to tune how far we want to look back in query logs to process usage data.

stageFileLocation: Temporary file name to store the query logs before processing. Absolute file path required.

resultLimit: Configuration to set the limit for query logs

queryLogFilePath: Configuration to set the file path for query logs

To specify where the staging files will be located.

Note that the location is a directory that will be cleaned at the end of the ingestion.

The main property here is the openMetadataServerConfig, where you can define the host and security provider of your OpenMetadata installation.

Logger Level

You can specify the loggerLevel depending on your needs. If you are trying to troubleshoot an ingestion, running with DEBUG will give you far more traces for identifying issues.

JWT Token

JWT tokens will allow your clients to authenticate against the OpenMetadata server. To enable JWT Tokens, you will get more details here.

You can refer to the JWT Troubleshooting section link for any issues in your JWT configuration.

Store Service Connection

If set to true (default), we will store the sensitive information either encrypted via the Fernet Key in the database or externally, if you have configured any Secrets Manager.

If set to false, the service will be created, but the service connection information will only be used by the Ingestion Framework at runtime, and won't be sent to the OpenMetadata server.

Store Service Connection

If set to true (default), we will store the sensitive information either encrypted via the Fernet Key in the database or externally, if you have configured any Secrets Manager.

If set to false, the service will be created, but the service connection information will only be used by the Ingestion Framework at runtime, and won't be sent to the OpenMetadata server.

SSL Configuration

If you have added SSL to the OpenMetadata server, then you will need to handle the certificates when running the ingestion too. You can either set verifySSL to ignore, or have it as validate, which will require you to set the sslConfig.caCertificate with a local path where your ingestion runs that points to the server certificate file.

Find more information on how to troubleshoot SSL issues here.

filename.yaml

After saving the YAML config, we will run the command the same way we did for the metadata ingestion:
