AWS Cognito SSO Configuration (Public)

• Troubleshooting

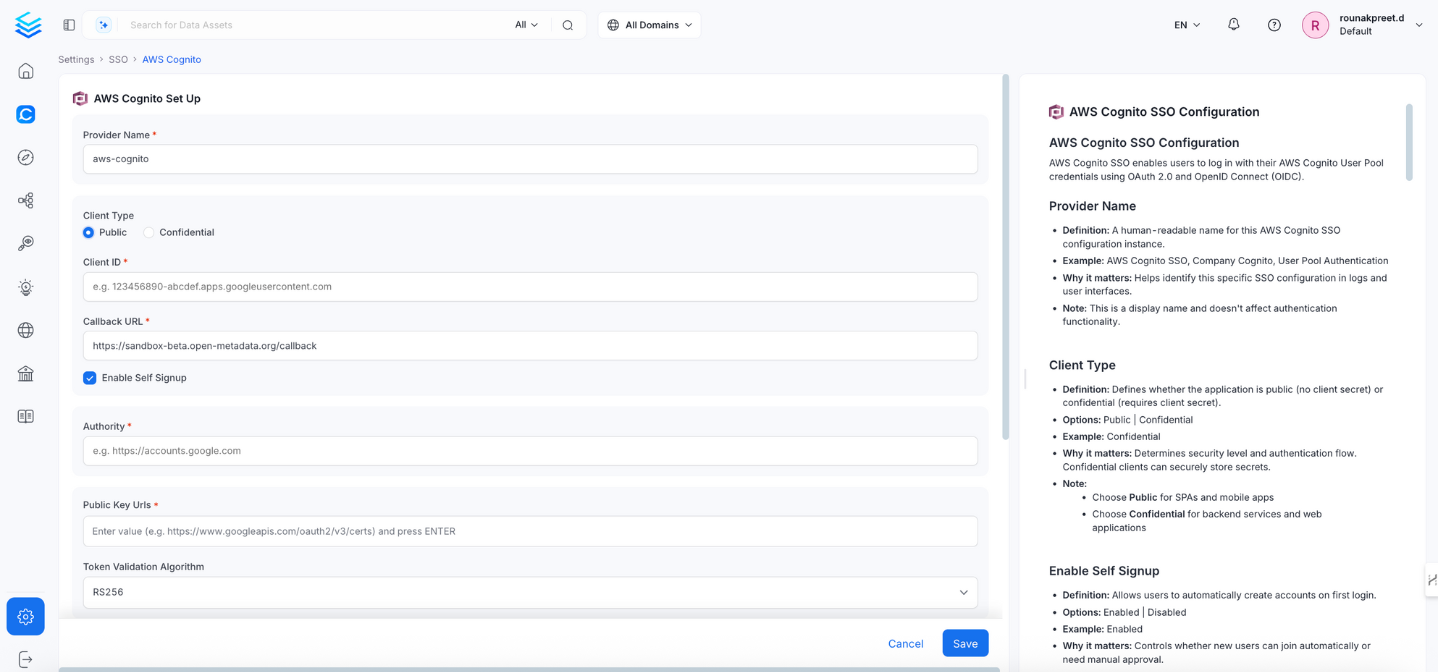

AWS Cognito SSO enables users to log in using their credentials from a Cognito User Pool through OAuth 2.0 and OpenID Connect (OIDC). This guide walks you through configuring AWS Cognito as an authentication provider in OpenMetadata.

Public Configuration Fields

Provider Name

• Definition: Human-readable name for this Cognito SSO instance.
• Example: AWS Cognito SSO, Company Cognito
• Note: Used only for display and logging purposes.

Client Type

• Definition: Defines whether the app is public (no secret) or confidential (requires client secret).
• Options: Public | Confidential
• Example: Confidential
• Note:
  • Use Public for SPAs or mobile apps
  • Use Confidential for web apps or backends

OIDC Client ID

• Definition: Client ID from the Cognito User Pool App.
• Example: 1a2b3c4d5e6f7g8h9i0j1k2l3m4n5o6p
• Note: Found under Cognito > User Pools > App Integration > App Clients

OIDC Callback URL

• Definition: URI where Cognito redirects after authentication.
• Example: https://yourapp.company.com/callback
• Note:
  • Must be registered in Cognito > Allowed Callback URLs
  • Use HTTPS in production

Enable Self Signup

• Definition: Allows new users to auto-create accounts upon first login.
• Example: Enabled
• Note: Cognito must also allow sign-ups.

Authority

• Definition: AWS Cognito token-issuing domain.
• Example: https://cognito-idp.us-east-1.amazonaws.com/us-east-1_ABC123DEF
• Note: Replace with your region and User Pool ID

Public Key URLs

• Definition: JWKS URLs used to verify token signatures.
• Example: ["https://cognito-idp.us-east-1.amazonaws.com/us-east-1_ABC123DEF/.well-known/jwks.json"]

Token Validation Algorithm

• Definition: Algorithm to validate JWT tokens.
• Options: RS256 | RS384 | RS512
• Default: RS256

JWT Principal Claims

• Definition: Claims used to identify the user.
• Example: ["cognito:username", "email", "sub"]
• Note: Typical Cognito claims include cognito:username, email, sub, preferred_username

JWT Principal Claims Mapping

• Definition: Maps claims to OpenMetadata user fields.
• Example: ["email:email", "name:name", "firstName:given_name"]
• Note: Format - "openmetadata_field:jwt_claim"

Admin Principals

• Definition: List of users with admin access.
• Example: ["admin@company.com", "superuser@company.com"]

Principal Domain

• Definition: Default domain for users.
• Example: company.com
• Note: Helps construct full identity from usernames.

Enforce Principal Domain

• Definition: Restrict access to users from a specific domain.
• Example: true
• Default: false

Enable Secure Socket Connection

• Definition: Enables SSL/TLS for secure communication.
• Example: true
• Default: false
• Note: Recommended in production

Summary Table

Troubleshooting

If users are automatically logged out and unable to log in again due to a bad authentication configuration, you can reset the security setup using the following command:

After executing the command, restart the server. The authentication values from your YAML or Helm chart will then be reapplied on startup. The following tiles detail how to apply this configuration across Docker, Kubernetes, and Bare Metal deployments:
