Connector Troubleshooting Guide

This guide provides instructions to help resolve common issues encountered during connector setup and metadata ingestion in OpenMetadata. Below are some of the most frequently observed troubleshooting scenarios.

ADLS Datalake
AzureSQL
Databricks
Domo Database
Hive
Impala
MSSQL
PostgreSQL
Redshift
S3 Datalake
Vertica
Kafka
Nifi

How to Enable Debug Logging for Any Ingestion

To enable debug logging for any ingestion workflow in OpenMetadata:

Navigate to Services Go to Settings > Services > Service Type (e.g., Database) in the OpenMetadata UI.

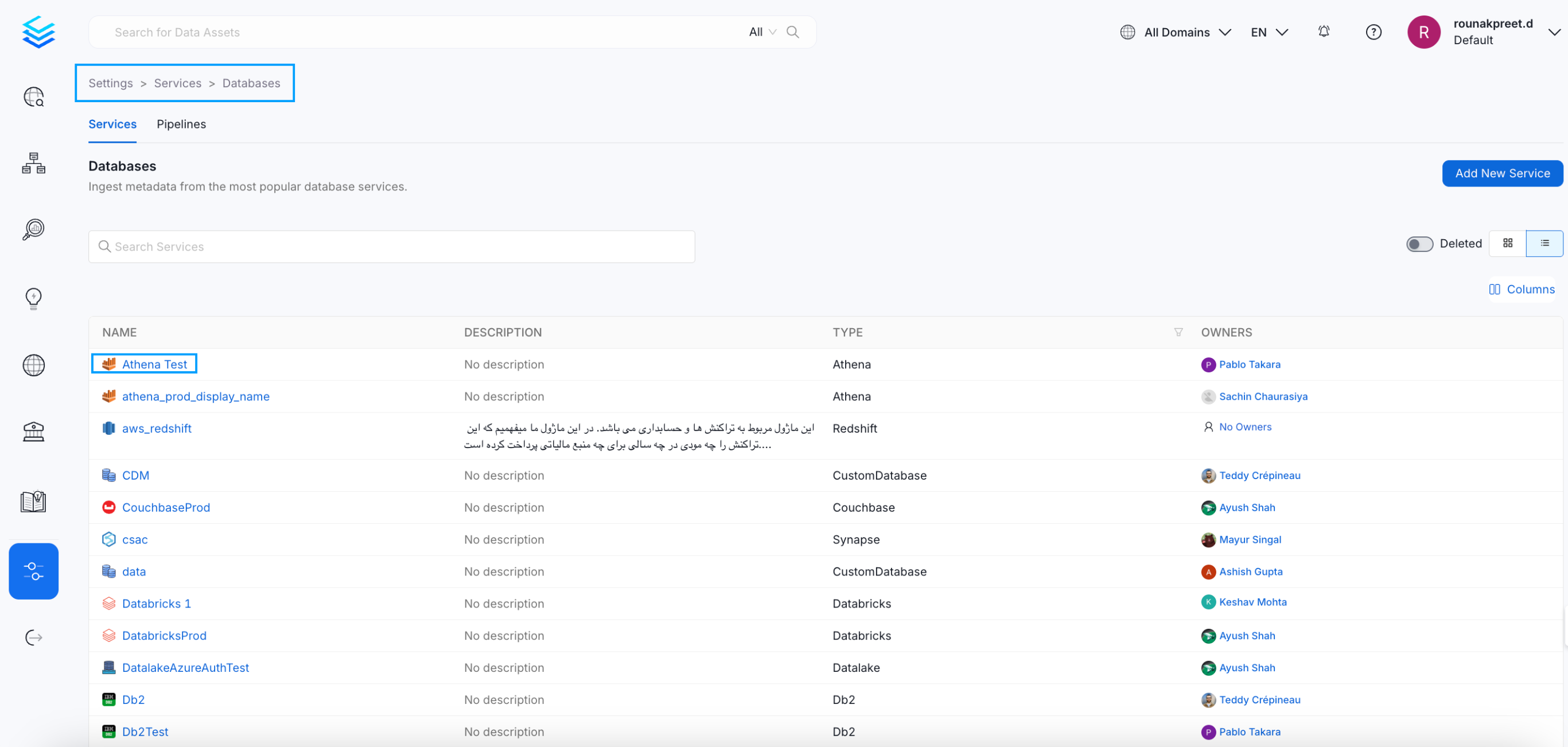

Select a Service Choose the specific service for which you want to enable debug logging.

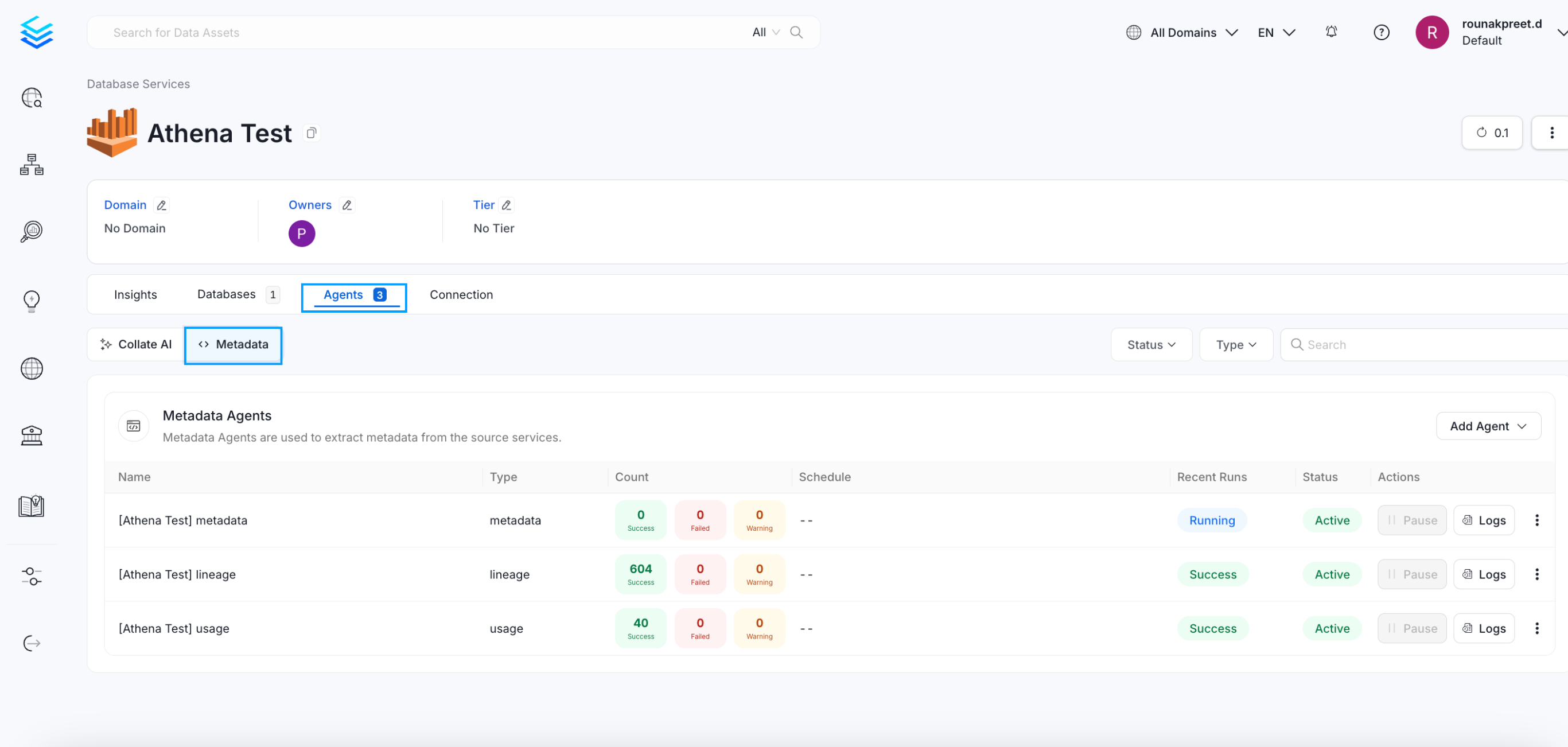

Access Ingestion Tab Go to the Ingestion tab and click the three-dot menu on the right-hand side of the ingestion type, and select Edit.

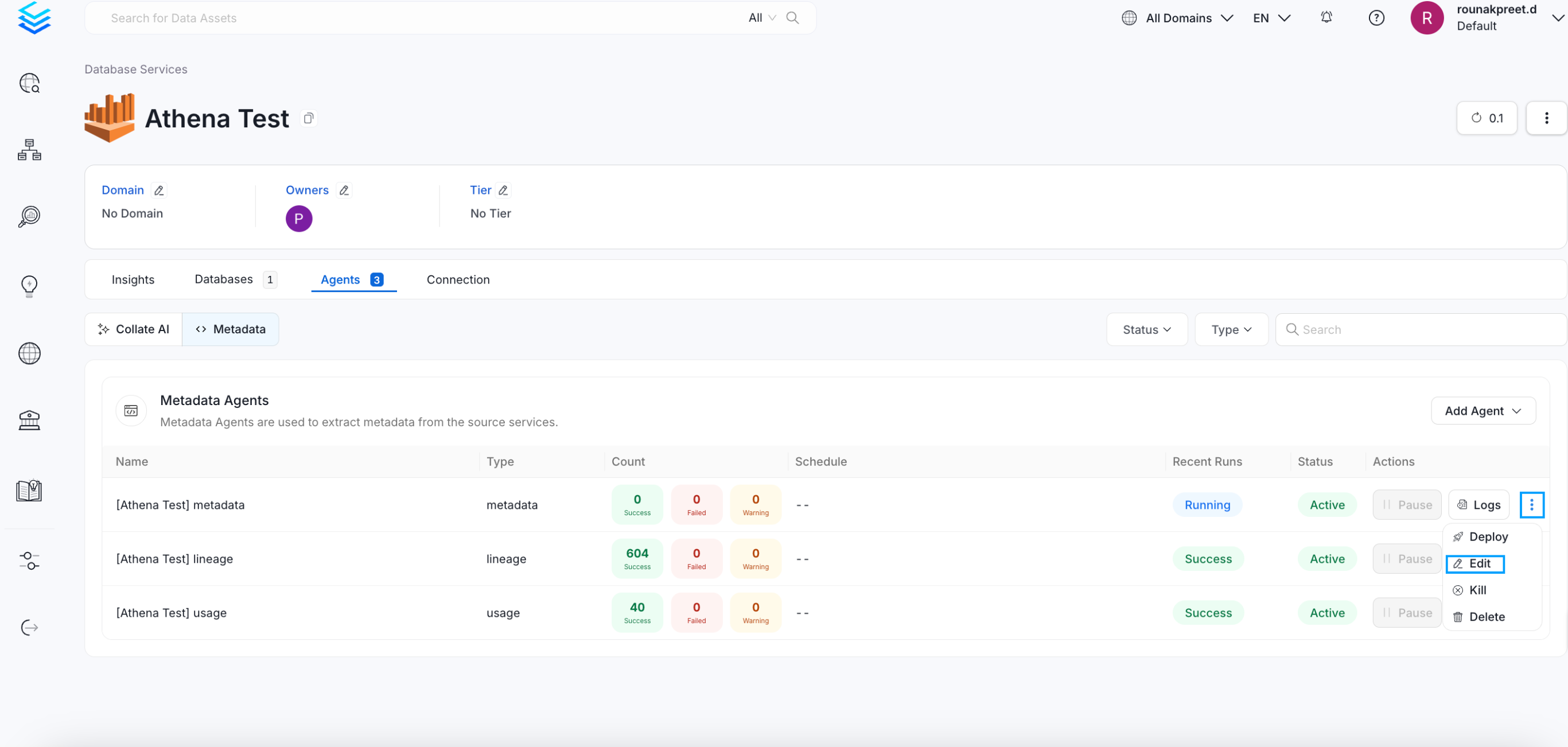

Enable Debug Logging In the configuration dialog, enable the Debug Log option and click Next.

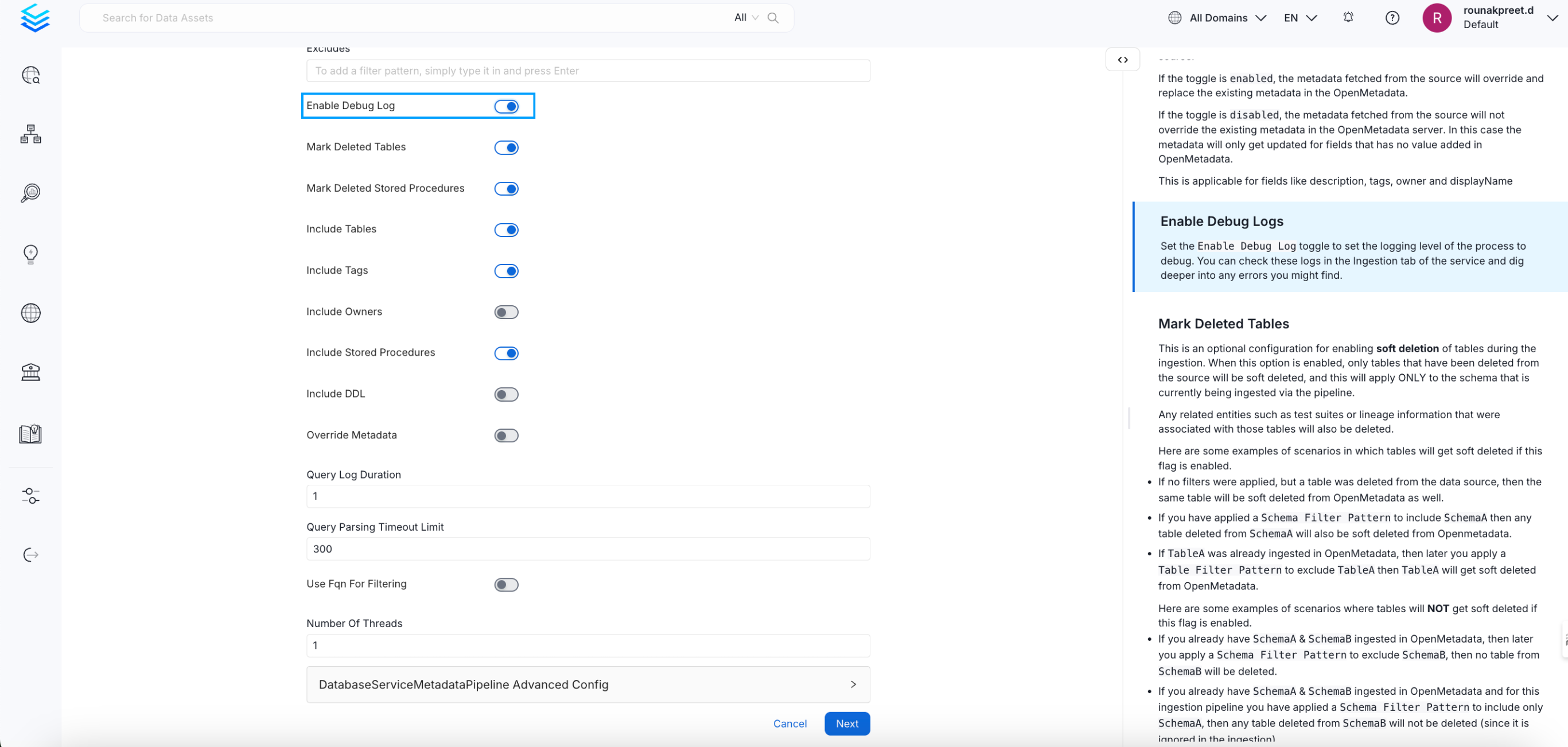

Schedule and Submit Configure the schedule if needed and click Submit to apply the changes.

Permission Issues

If you encounter permission-related errors during connector setup or metadata ingestion, ensure that all the prerequisites and access configurations specified for each connector are properly implemented. Refer to the connector-specific documentation to verify the required permissions.

ADLS Datalake

Learn how to resolve the most common problems people encounter in the ADLS Datalake connector.

‘Azure Datalake’ credentials details

Where can I find ‘Client Secret’ from.

Login to Azure Portal
Find and click on your application

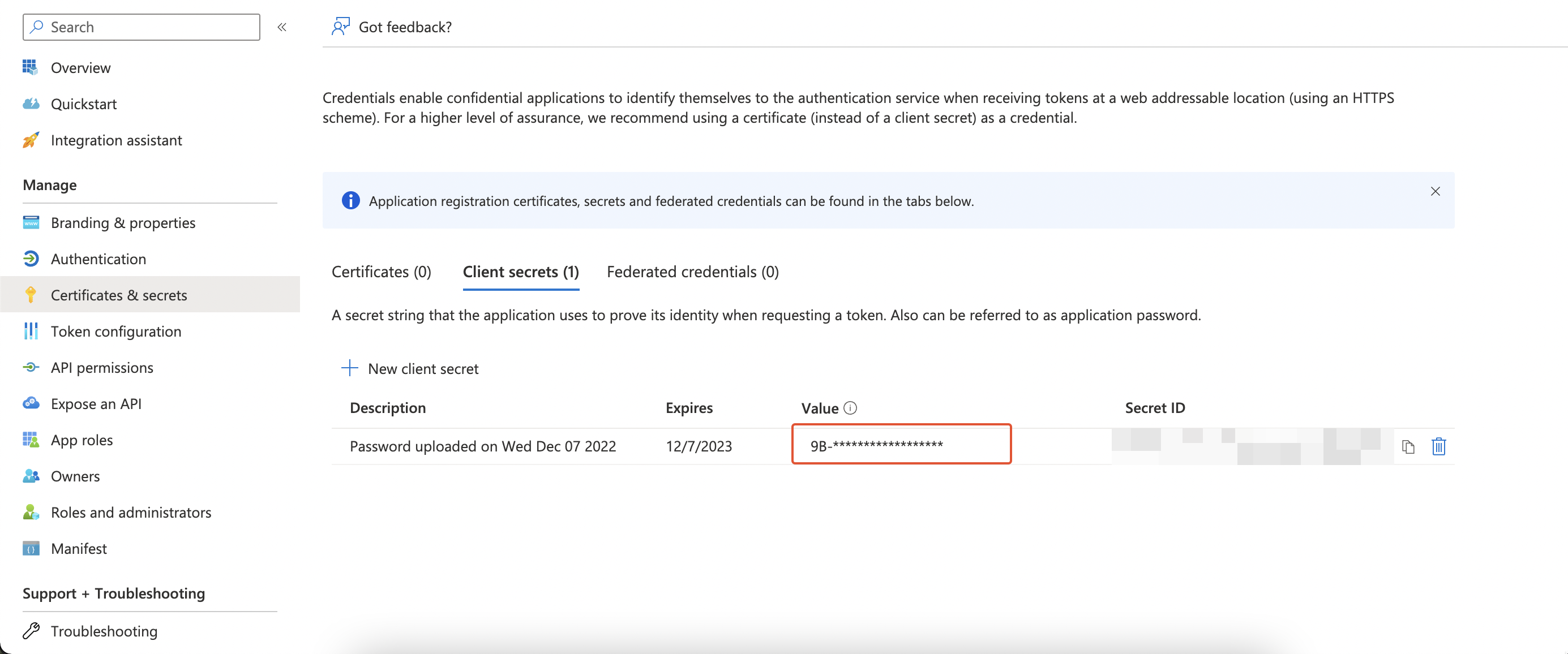

Select Certificates & Secret under Manage Section

AzureSQL

Learn how to resolve the most common problems people encounter in the AzureSQL connector.

Unknown error connecting with Engine […]; An attempt to complete a transaction has failed. No corresponding transaction found. (111214) (SQLEndTran)

This is an exception you can get when trying to connect to AzureSQL using SQLAlchemy (the internal OpenMetadata Ingestion library for reaching databases). To solve this issue, you can edit your Service Connection by adding the following Connection Argument:

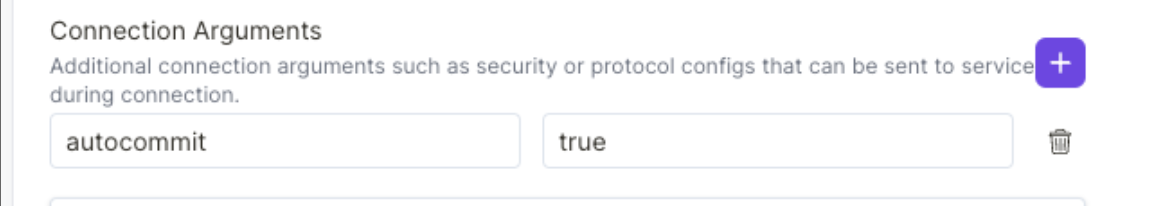

Key: autocommit
Value: true

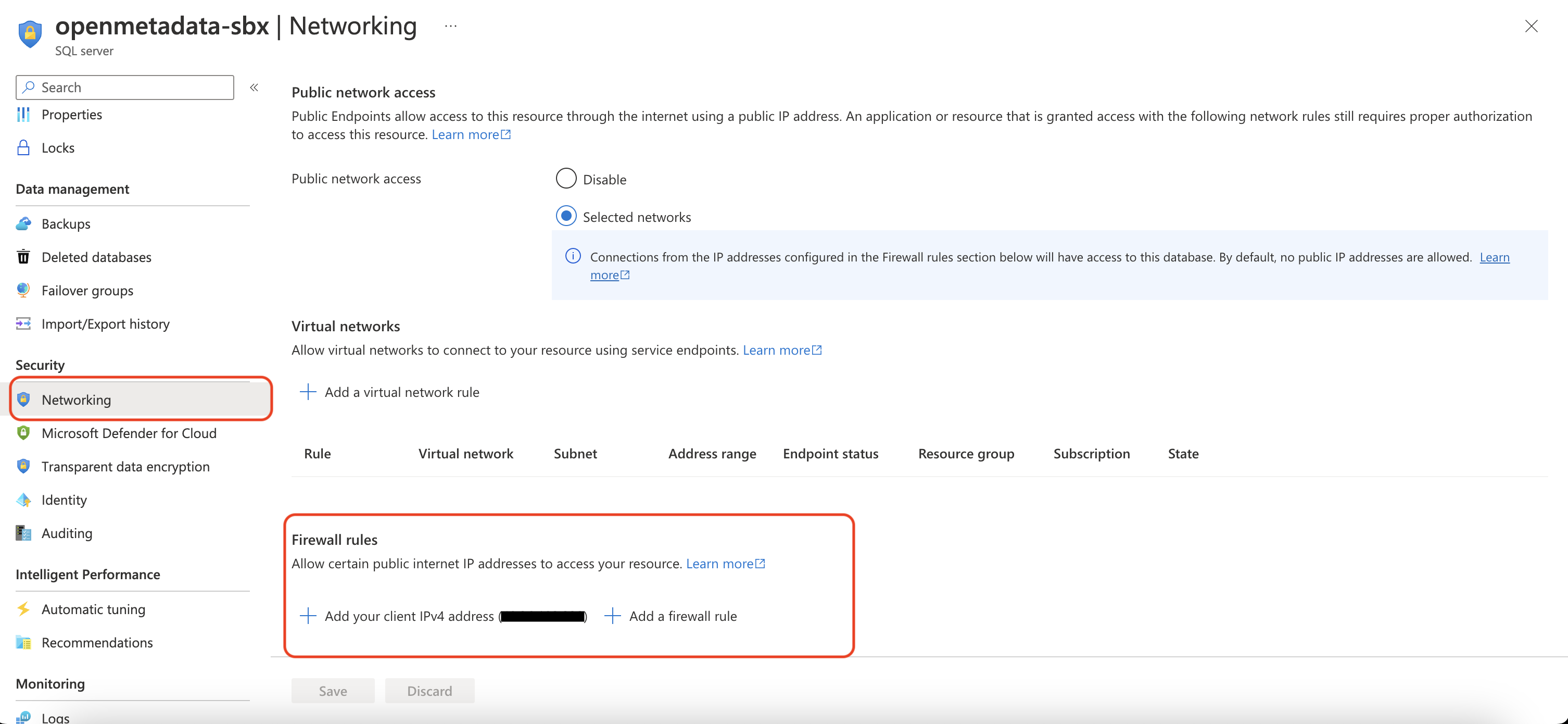

Cannot open server ‘[server name]’ requested by the login. Client with IP address ‘[your IP]’ is not allowed to access the server

This is an exception you can get when trying to connect to AzureSQL using SQLAlchemy (the internal OpenMetadata Ingestion library for reaching databases). To solve this issue, you need to add your IP address in firewall rules for your Azure SQL instance.

Databricks

Databricks connection details

source:
  type: databricks
  serviceName: local_databricks
  serviceConnection:
    config:
      catalog: hive_metastore
      databaseSchema: default
      token: <databricks token>
      hostPort: localhost:443
      connectionArguments:
        http_path: <http path of databricks cluster>
  sourceConfig:
    config:
      type: DatabaseMetadata
sink:
  type: metadata-rest
  config: {}
workflowConfig:
  openMetadataServerConfig:
    hostPort: http://localhost:8585/api
    authProvider: no-auth

Here are the steps to get hostPort, token and http_path. First login to Azure Databricks and from side bar select SQL Warehouse (In SQL section)

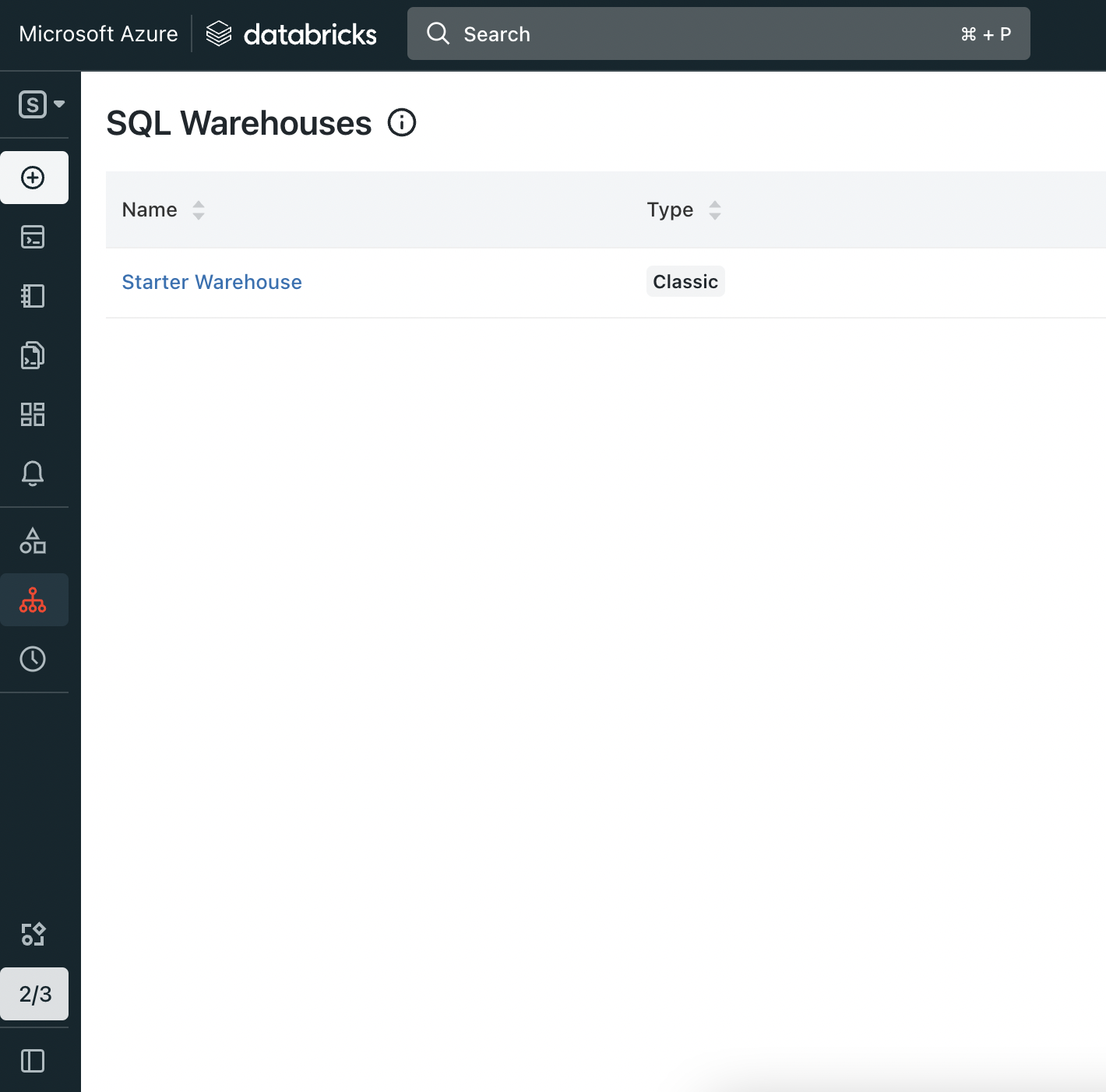

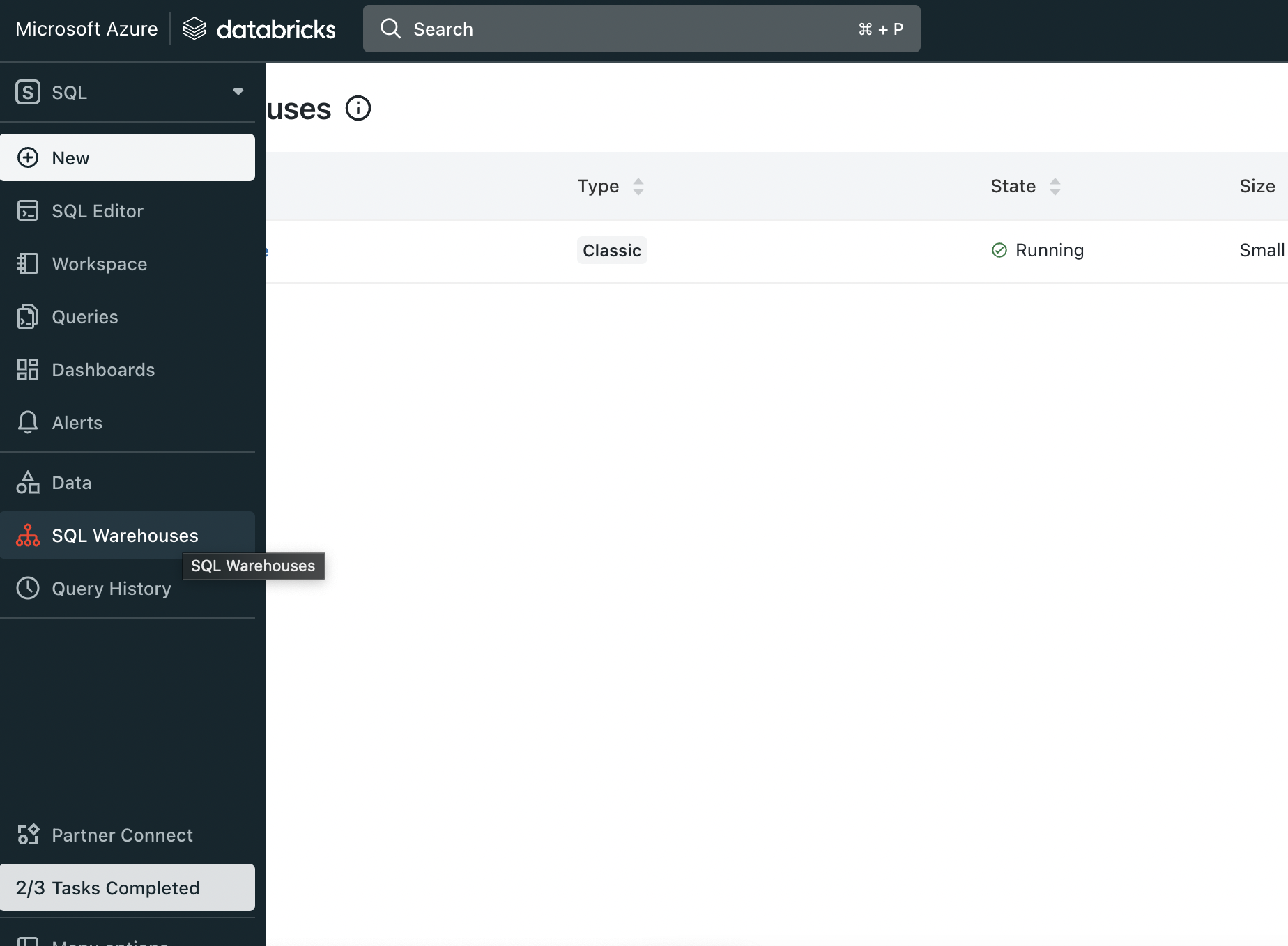

Now click on sql Warehouse from the SQL Warehouses list.

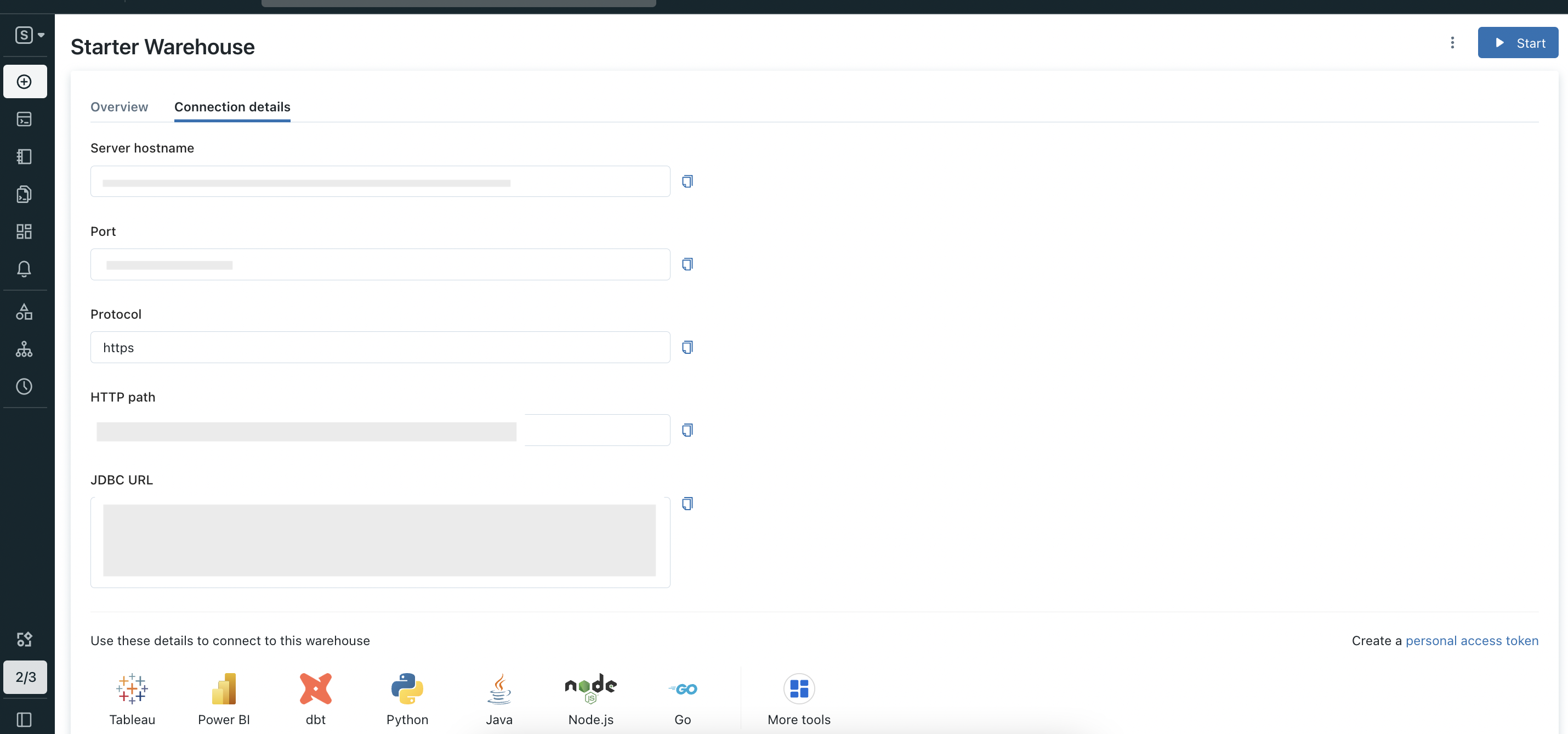

Now inside that page go to Connection details section. In this page Server hostname and Port is your hostPort, HTTP path is your http_path.

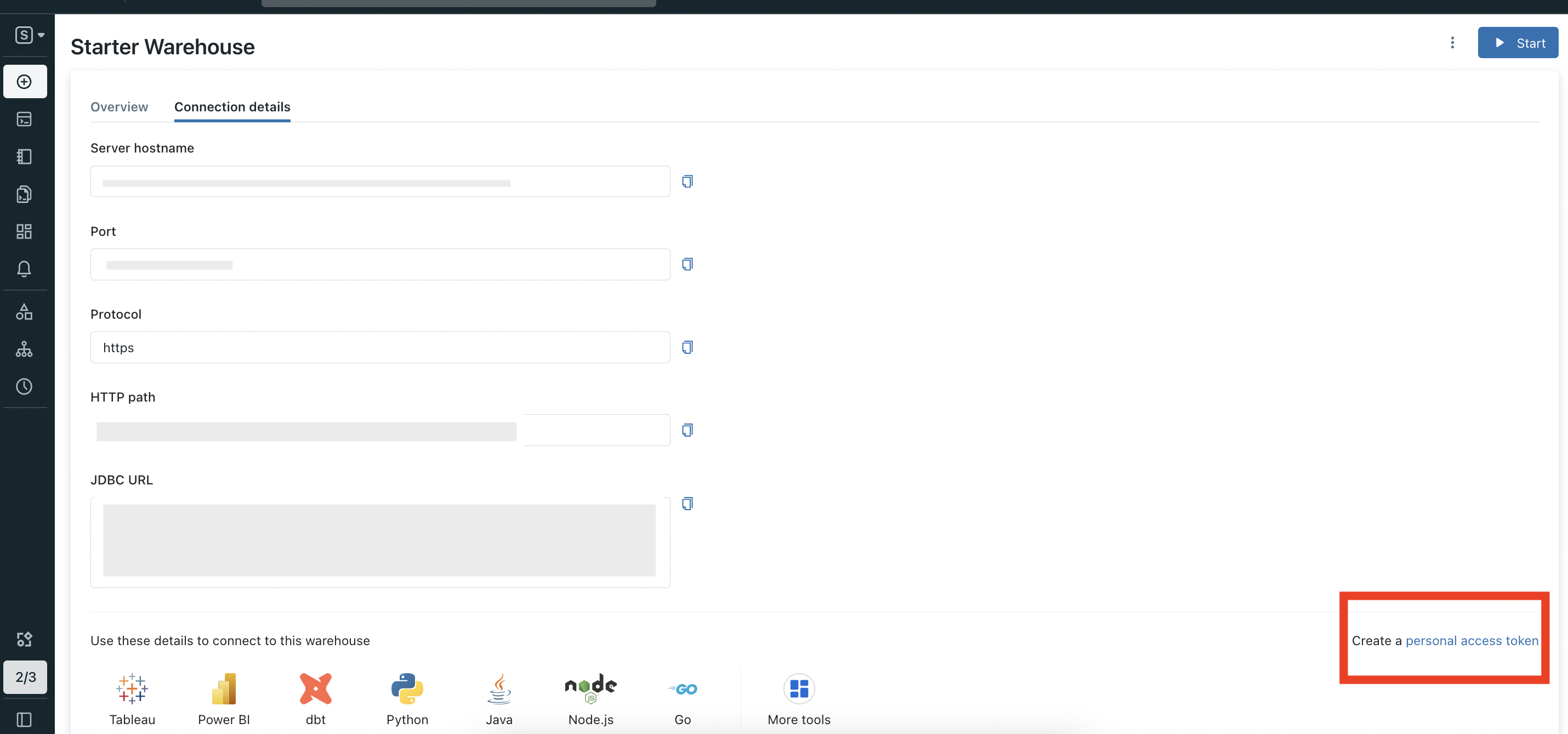

In Connection details section page click on Create a personal access token.

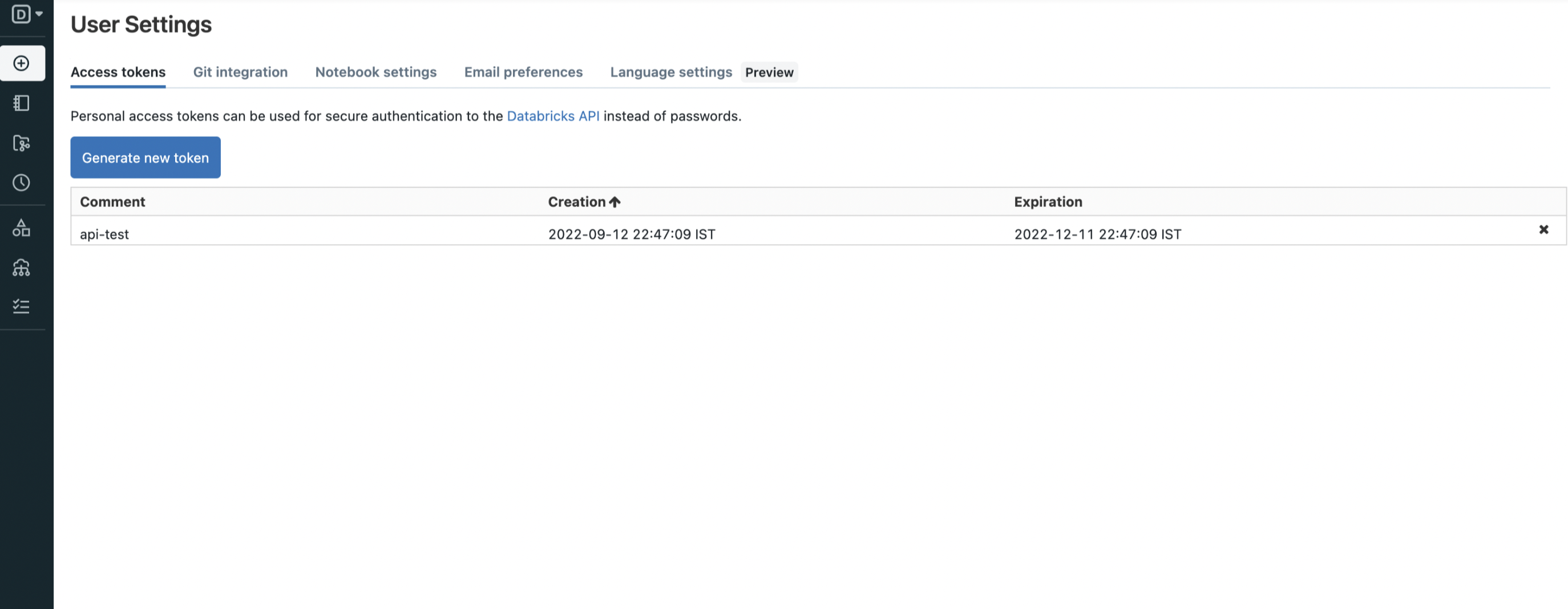

Now In this page you can create new token.

Domo Database

Learn how to resolve the most common problems people encounter in the Domo Database connector.

How to find clientId?

You can find your clientId by logging into your domo instance.
After that click on My Account> Manage Clients(if created).

Where to find accessToken?

You need to generate accessToken.
Login into your sandbox domain ex. <your-domain>.domo.com.
Click on the MORE button on navbar, after that click on Admin.

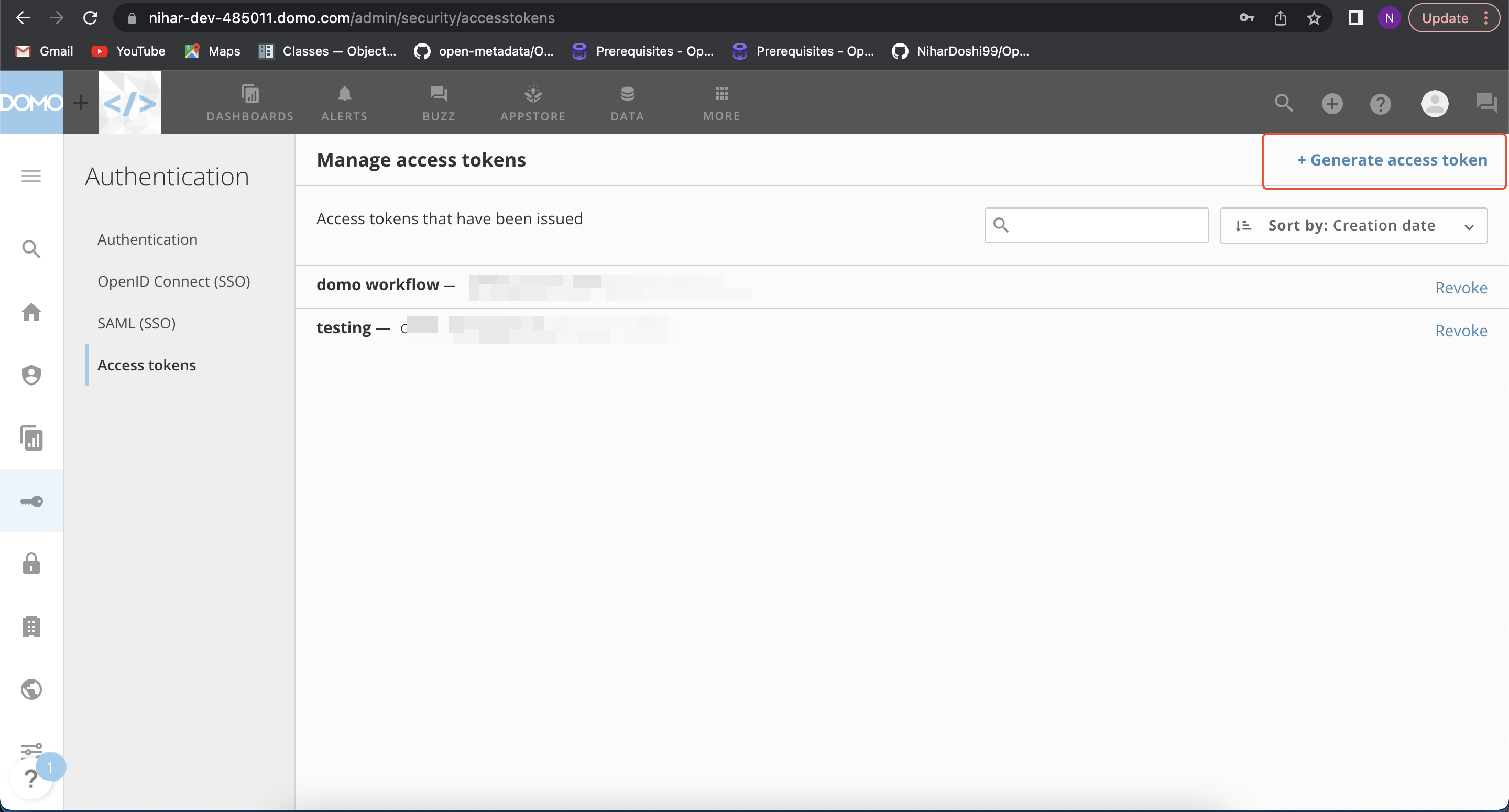

Under Authentication you will find Access tokens.

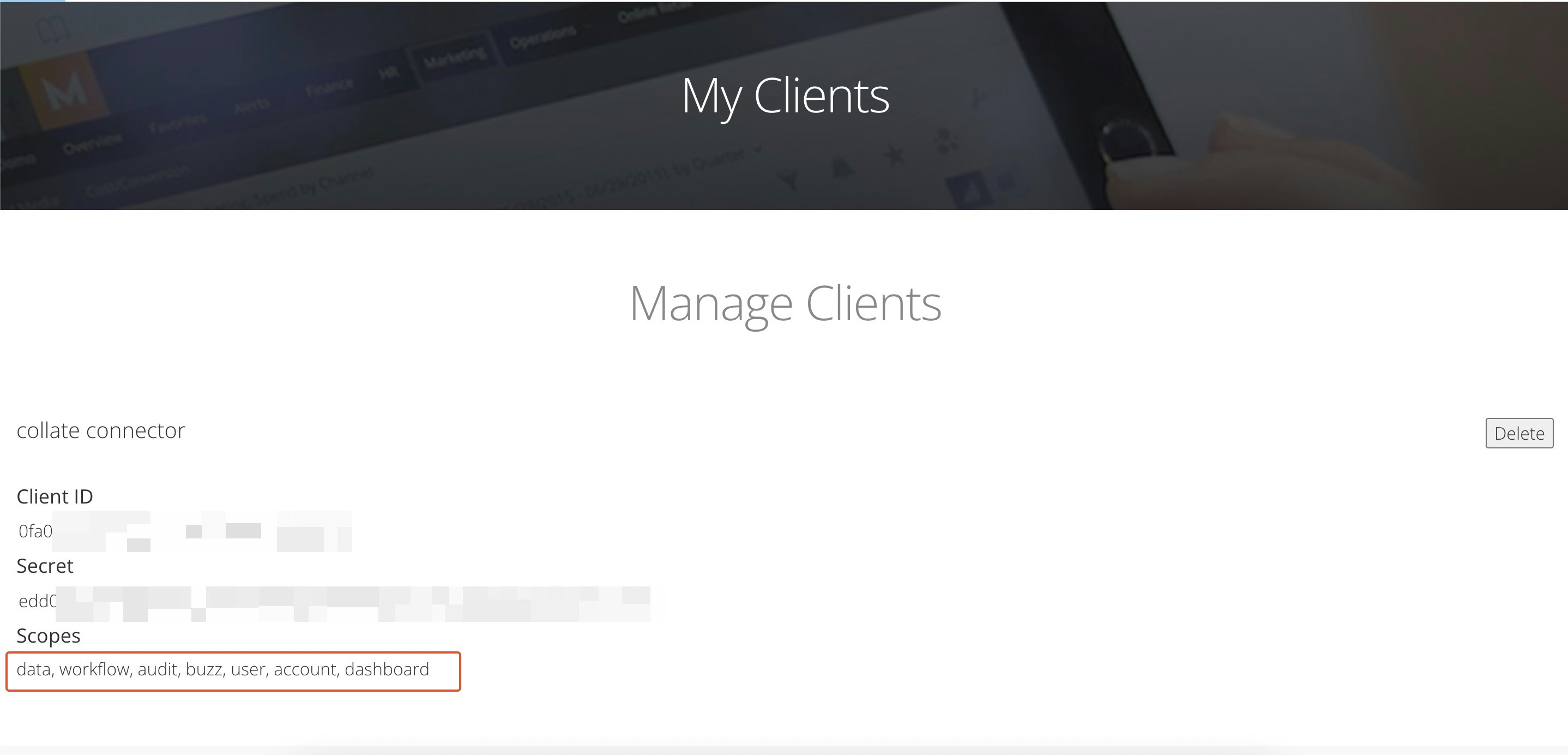

Where can I find my scopes?

Scopes can be find Under Manage Clients section in My Account (If client not found, click here)

Hive

Learn how to resolve the most common problems people encounter in the Hive connector.

Connection Timeout

You might be getting thrift.transport.TTransport.TTransportException: TSocket read 0 bytes. Make sure that if there is a Load Balancer in between OpenMetadata and Hive, the LB timeout is not impacting the ingestion. For example, when extracting data with a lot of partitions the DESCRIBE command might take more than 60 seconds, so a Load Balancer with Idle Timeout at 60 seconds would kill the connection.

Impala

Learn how to resolve the most common problems people encounter in the Impala connector.

Connection Timeout

You might be getting thrift.transport.TTransport.TTransportException: TSocket read 0 bytes. Make sure that if there is a Load Balancer in between OpenMetadata and Impala, the LB timeout is not impacting the ingestion. For example, when extracting data with a lot of partitions the DESCRIBE command might take more than 60 seconds, so a Load Balancer with Idle Timeout at 60 seconds would kill the connection.

MSSQL

Resolving SQL Server Authentication Issue for Windows User

This guide addresses a common issue when connecting to a SQL Server instance using Windows OS. If you encounter the error below, follow the steps outlined to resolve it effectively.

Error Description

When attempting to connect to SQL Server using a Windows user, the following error appears:

(pyodbc.InterfaceError) ('28000', "[28000] [Microsoft][ODBC Driver 18 for SQL Server][SQL Server]Login failed for user 'domain\\user'. (18456)")

Additionally, the SQL Server logs display:

Login failed for user 'domain\user'. Reason: Attempting to use an NT account name with SQL Server Authentication.

Root Cause

The error occurs because the connection is configured to use SQL Server Authentication instead of Windows Authentication. Windows Authentication requires a connection scheme that supports integrated security.

Resolution

Step 1: Verify Connection Configuration

Ensure that you are connecting to SQL Server using Windows Authentication.
Update the connection scheme to use mssql+pymssql instead of mssql.pyodbc.

Step 2: Update the Connection Details in OpenMetadata

Navigate to MSSQL Service Configuration in the OpenMetadata UI.
Update the Connection Scheme to mssql+pymssql.
Retain the following connection details:
- Host and Port: e.g., 10.121.89.148:62452.
- Database: Specify the target database (e.g., OneSumx_Stoging).
- Username: Use the Windows account username, e.g., domain\user.
Save the updated configuration.

Step 3: Test the Connection

After saving the changes, click Test Connection in the OpenMetadata UI.
Confirm that the following steps pass successfully:
- CheckAccess
- GetDatabases
- GetSchemas
- GetTables
- GetViews
- GetQueries

Expected Outcome

After updating the connection scheme, the connection should succeed. The status will display:

Connection Status: Success

PostgreSQL

Learn how to resolve the most common problems people encounter in the PostgreSQL connector.

Column XYZ does not exist

If when running the metadata ingestion workflow you get a similar error to:

Traceback (most recent call last):
  File "/usr/local/lib/python3.9/site-packages/airflow/models/taskinstance.py", line 1165, in _run_raw_task
    self._prepare_and_execute_task_with_callbacks(context, task)
  File "/usr/local/lib/python3.9/site-packages/airflow/models/taskinstance.py", line 1283, in _prepare_and_execute_task_with_callbacks
    result = self._execute_task(context, task_copy)
  File "/usr/local/lib/python3.9/site-packages/airflow/models/taskinstance.py", line 1313, in _execute_task
    result = task_copy.execute(context=context)
  File "/usr/local/lib/python3.9/site-packages/airflow/operators/python.py", line 150, in execute
    return_value = self.execute_callable()
  File "/usr/local/lib/python3.9/site-packages/airflow/operators/python.py", line 161, in execute_callable
    return self.python_callable(*self.op_args, **self.op_kwargs)
  File "/usr/local/lib/python3.9/site-packages/openmetadata/workflows/ingestion/common.py", line 114, in metadata_ingestion_workflow
    workflow.execute()
  File "/usr/local/lib/python3.9/site-packages/metadata/ingestion/api/workflow.py", line 161, in execute
    for record in self.source.next_record():
  File "/usr/local/lib/python3.9/site-packages/metadata/ingestion/api/topology_runner.py", line 104, in next_record
    yield from self.process_nodes(get_topology_root(self.topology))
  File "/usr/local/lib/python3.9/site-packages/metadata/ingestion/api/topology_runner.py", line 89, in process_nodes
    yield from self.process_nodes(child_nodes)
  File "/usr/local/lib/python3.9/site-packages/metadata/ingestion/api/topology_runner.py", line 89, in process_nodes
    yield from self.process_nodes(child_nodes)
  File "/usr/local/lib/python3.9/site-packages/metadata/ingestion/api/topology_runner.py", line 89, in process_nodes
    yield from self.process_nodes(child_nodes)
  File "/usr/local/lib/python3.9/site-packages/metadata/ingestion/api/topology_runner.py", line 67, in process_nodes
    for element in node_producer() or []:
  File "/usr/local/lib/python3.9/site-packages/metadata/ingestion/source/database/common_db_source.py", line 210, in get_tables_name_and_type
    if self.is_partition(
  File "/usr/local/lib/python3.9/site-packages/metadata/ingestion/source/database/postgres.py", line 87, in is_partition
    cur.execute(
psycopg2.errors.UndefinedColumn: column "relispartition" does not exist
LINE 2:                 SELECT relispartition as is_partition

Then you might be using an unsupported postgres version. If we double-check the requirements for the postgres connector: Note that we only support officially supported PostgreSQL versions. You can check the version list here.

Error: `no pg_hba.conf entry for host`

When trying to connect to a PostgreSQL server hosted on Azure/AWS using basic authentication, the connection may fail with the following error message:

(psycopg2.OperationalError) FATAL: no pg_hba.conf entry for host "x.xx.xxx.x", user "xxxxxx", database "xxxxx", no encryption

This error generally indicates that the host trying to access the PostgreSQL server is not permitted according to the server’s pg_hba.conf configuration, which manages authentication.

Whitelist the IP address Ensure that the IP address provided by the OpenMetadata Service wizard is whitelisted in the Azure network firewall rules. You should also verify that the correct IP is added in the firewall for the database to allow connections from OpenMetadata.
Check pg_hba.conf File While Azure-managed PostgreSQL doesn’t allow direct access to modify the pg_hba.conf file, you can control access using Azure Firewall rules. Ensure that the IP address attempting to connect is allowed.
Verify Network Access Ensure that the PostgreSQL server is accessible from the internet for the allowed IP addresses. If the server is behind a VPN or private network, adjust the network settings accordingly.
Adjust SSL Mode The error could also be related to SSL settings. Setting the SSL mode to allow can help resolve this issue. Modify the connection settings in the OpenMetadata Service configuration to:

SSL Mode: Allow

This will allow the connection even if SSL is not enforced by the server.

Redshift

Learn how to resolve the most common problems people encounter in the Redshift connector.

Connection Error

connection to server at \"<host>:<port>\" (@IP),
<port> failed: server certificate for \"\*<host>:<port>\"
does not match host name \"<host>:<port>\"

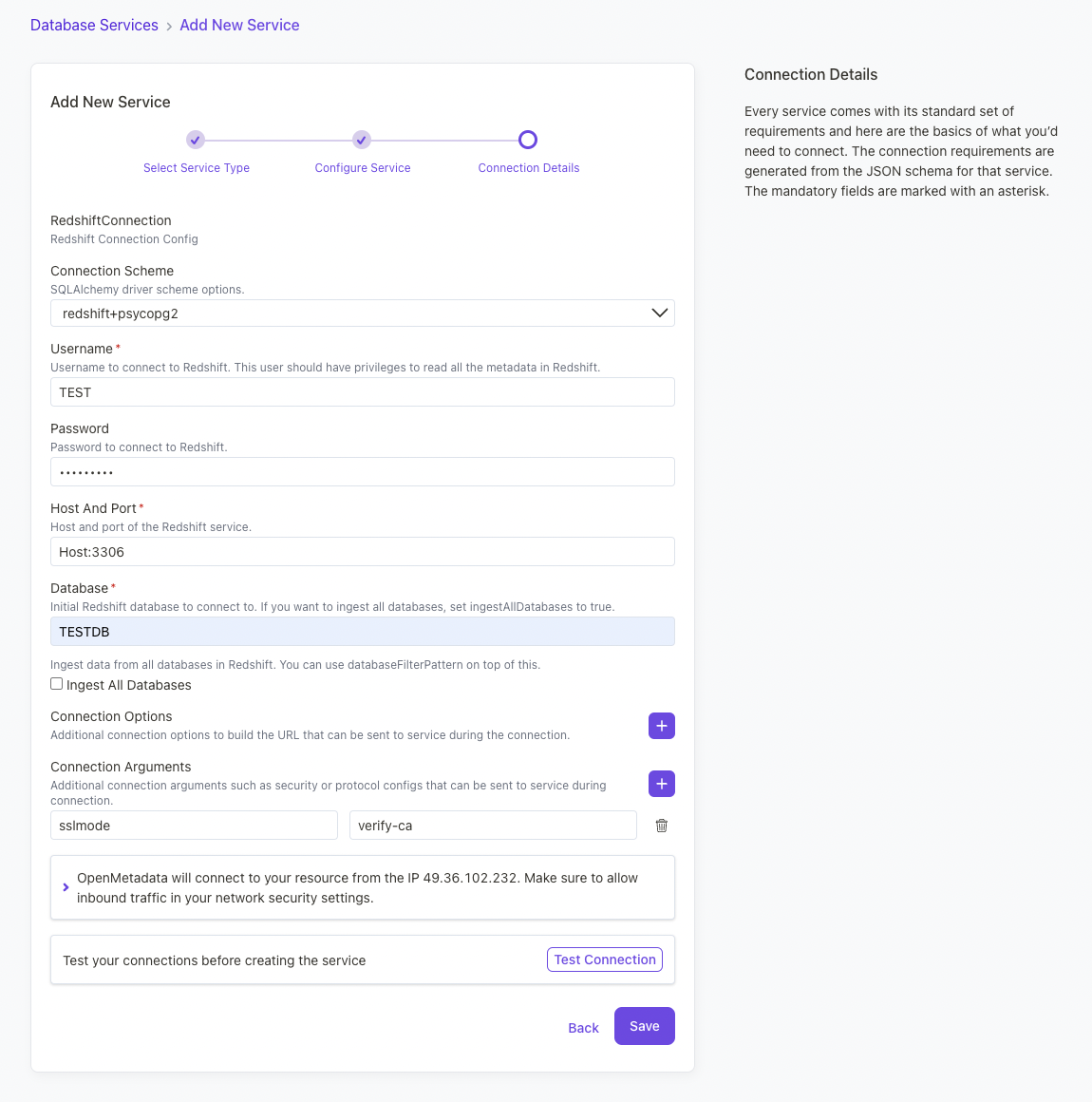

If you get this error that time please pass {'sslmode': 'verify-ca'} in the connection arguments.

Metdata Ingestion Failure

If your metadata ingesiton fails and you have errors like:

RuntimeError: Table entity not found: [<default>.pg_class]
RuntimeError: Table entity not found: [<default>.pg_constraint]

This is because the schema information_schema is being ingested and the ingestion bot does not have the permissions to access it. It is recommended to exclude the schema information_schema unless you explicitly need to ingest it like in the example config.

# ...
source:
  # ...
  type: redshift
  sourceConfig:
    config:
      type: DatabaseMetadata
      schemaFilterPattern:
        excludes:
        - information_schema.*
# ...

S3 Datalake

Learn how to resolve the most common problems people encounter in the S3 Datalake connector.

‘Access Denied’ error when reading from S3 bucket

Please, ensure you have a Bucket Policy with the permissions explained in the requirement section here.

Unity Catalog

Unity Catalog connection details

source:
  type: unitycatalog
  serviceName: local_unity_catalog
  serviceConnection:
    config:
      catalog: hive_metastore
      databaseSchema: default
      token: <databricks token>
      hostPort: localhost:443
      connectionArguments:
        http_path: <http path of databricks cluster>
  sourceConfig:
    config:
      type: DatabaseMetadata
sink:
  type: metadata-rest
  config: {}
workflowConfig:
  openMetadataServerConfig:
    hostPort: http://localhost:8585/api
    authProvider: no-auth

Here are the steps to get hostPort, token and http_path. First login to Azure Databricks and from side bar select SQL Warehouse (In SQL section)

Now click on sql Warehouse from the SQL Warehouses list.

Now inside that page go to Connection details section. In this page Server hostname and Port is your hostPort, HTTP path is your http_path.

In Connection details section page click on Create a personal access token.

Now In this page you can create new token.

Vertica

Learn how to resolve the most common problems people encounter in the Vertica connector.

Profiler: New session rejected

If you see the following error when computing the profiler New session rejected due to limit, already XYZ sessions active, it means that the number of threads configured in the profiler workflow is exceeding the connection limits of your Vertica instance. Note that by default the profiler runs with 5 threads. In case you see this error, you might need to reduce this number.

Kafka

Consumer and schema registry config

When configuring the Kafka connector, we could need to pass extra parameters to the consumer or the schema registry to be able to connect. The accepted values for the consumer can be found in the following link, while the ones optional for the schema registry are here. If you encounter issues connecting to the Schema Registry, ensure that the protocol is explicitly specified in the Schema Registry URL. For example:

Use http://localhost:8081 instead of localhost:8081. The Schema Registry requires a properly formatted URL, including the protocol (http:// or https://). While this differentiation is expected in the Schema Registry configuration, it may not be immediately apparent.

In case you are performing the ingestion through the CLI with a YAML file, the service connection config should look like this:

  serviceConnection:
    config:
      type: Kafka
      bootstrapServers: localhost:9092
      schemaRegistryURL: http://localhost:8081
      consumerConfig:
        "ssl.truststore.password": "password"
      schemaRegistryConfig:
        "basic.auth.user.info": "username:password"

Connecting to Confluent Cloud Kafka

If you are using Confluent kafka and SSL encryption is enabled you need to add security.protocol as key and SASL_SSL as value under Consumer Config

Nifi

Learn how to resolve the most common problems people encounter in the Nifi connector.

No applicable policies could be found

If you see the error No applicable policies could be found. Contact the system administrator during the Test Connection or when running the ingestion, you will need to add the missing policies in the Nifi instance. You can find more information in this link. The accepted answer is to add a policy to authorizations.xml as follows:

<policy identifier="0c6d205e-9153-4bcd-9534-aeb029c65e10" resource="/resources" action="R">
    <group identifier="2c7ce5db-0186-1000-ffff-ffffdbb1315d"/>
</policy>

Connectors

Connector

Connector Ingestion

​Connector Troubleshooting Guide

​How to Enable Debug Logging for Any Ingestion

​Permission Issues

​ADLS Datalake

​‘Azure Datalake’ credentials details

Where can I find ‘Client Secret’ from.

​AzureSQL

​Databricks

​Databricks connection details

​Domo Database

​How to find clientId?

​Where to find accessToken?

​Where can I find my scopes?

​Hive

​Connection Timeout

​Impala

​Connection Timeout

​MSSQL

​Resolving SQL Server Authentication Issue for Windows User

​Error Description

​Root Cause

​Resolution

​Step 1: Verify Connection Configuration

​Step 2: Update the Connection Details in OpenMetadata

​Step 3: Test the Connection

​Expected Outcome

​PostgreSQL

​Column XYZ does not exist

​Error: no pg_hba.conf entry for host

​Redshift

​Connection Error

​Metdata Ingestion Failure

​S3 Datalake

​Unity Catalog

​Unity Catalog connection details

​Vertica

​Profiler: New session rejected

​Kafka

​Consumer and schema registry config

​Connecting to Confluent Cloud Kafka

​Nifi

​No applicable policies could be found

Connector Troubleshooting Guide

How to Enable Debug Logging for Any Ingestion

Permission Issues

ADLS Datalake

‘Azure Datalake’ credentials details

AzureSQL

Databricks

Databricks connection details

Domo Database

How to find clientId?

Where to find accessToken?

Where can I find my scopes?

Hive

Connection Timeout

Impala

Connection Timeout

MSSQL

Resolving SQL Server Authentication Issue for Windows User

Error Description

Root Cause

Resolution

Step 1: Verify Connection Configuration

Step 2: Update the Connection Details in OpenMetadata

Step 3: Test the Connection

Expected Outcome

PostgreSQL

Column XYZ does not exist

Error: `no pg_hba.conf entry for host`

Redshift

Connection Error

Metdata Ingestion Failure

S3 Datalake

Unity Catalog

Unity Catalog connection details

Vertica

Profiler: New session rejected

Kafka

Consumer and schema registry config

Connecting to Confluent Cloud Kafka

Nifi

No applicable policies could be found
