Salesforce Data 360 Pipeline Connector | OpenMetadata Integration

Use this guide to configure the Salesforce Data 360 pipeline connector. The Salesforce Data 360 pipeline connector brings data movement and processing objects from Data 360 (formerly Data Cloud) into OpenMetadata as pipelines:

• Data Streams
• Calculated Insights
• Data Transforms

OpenMetadata uses three separate agents for this connector. The Metadata agent ingests pipeline definitions and tags, the Usage agent ingests Pipeline Status, and the Lineage agent ingests relationships to the tables each pipeline reads from and writes to. OpenMetadata ingests only objects with an ACTIVE status. Configure and schedule Salesforce Data 360 workflows from the OpenMetadata UI:

• Requirements
• Metadata Ingestion
• Troubleshooting

​

Requirements

OpenMetadata connects to Salesforce Data 360 through the Salesforce REST API using a connected app that authenticates with the OAuth 2.0 client credentials flow. Complete the following:

• Configure a Salesforce connected app for the OAuth 2.0 client credentials flow. This gives you the Consumer Key and Consumer Secret that OpenMetadata uses to authenticate. See the Salesforce documentation on creating a connected app for the setup steps.
• Grant the connected app the Manage Data Cloud and Access Data Cloud APIs scopes so it can list Data Streams, Calculated Insights, and Data Transforms and read their run history.
• Give the integration user permission to view these objects. The connection test verifies this by listing each object type.

​

Requirements for Lineage

Lineage connects each Data 360 pipeline to the tables it reads from and writes to. For OpenMetadata to resolve those tables, ingest the Salesforce Data 360 database first with the Data 360 database connector. Then point this pipeline service to it using the Data 360 Database Service Name field. Data Streams can pull from upstream systems outside Data 360 (for example, an S3 bucket or a Snowflake warehouse). To draw lineage to those upstream tables, use Service Mapping to map each Data 360 connector or data source name to the OpenMetadata service that already holds it.

​

Metadata Ingestion

To ingest metadata from Salesforce Data 360, create a service connection. The service connects Salesforce Data 360 with OpenMetadata. After you create the service and deploy the metadata agent, OpenMetadata starts ingesting metadata.

​

Step 1: Add New Service

1. Navigate to Settings > Services.
2. Click Add New Service.

​

Step 2: Select a Service and Connector

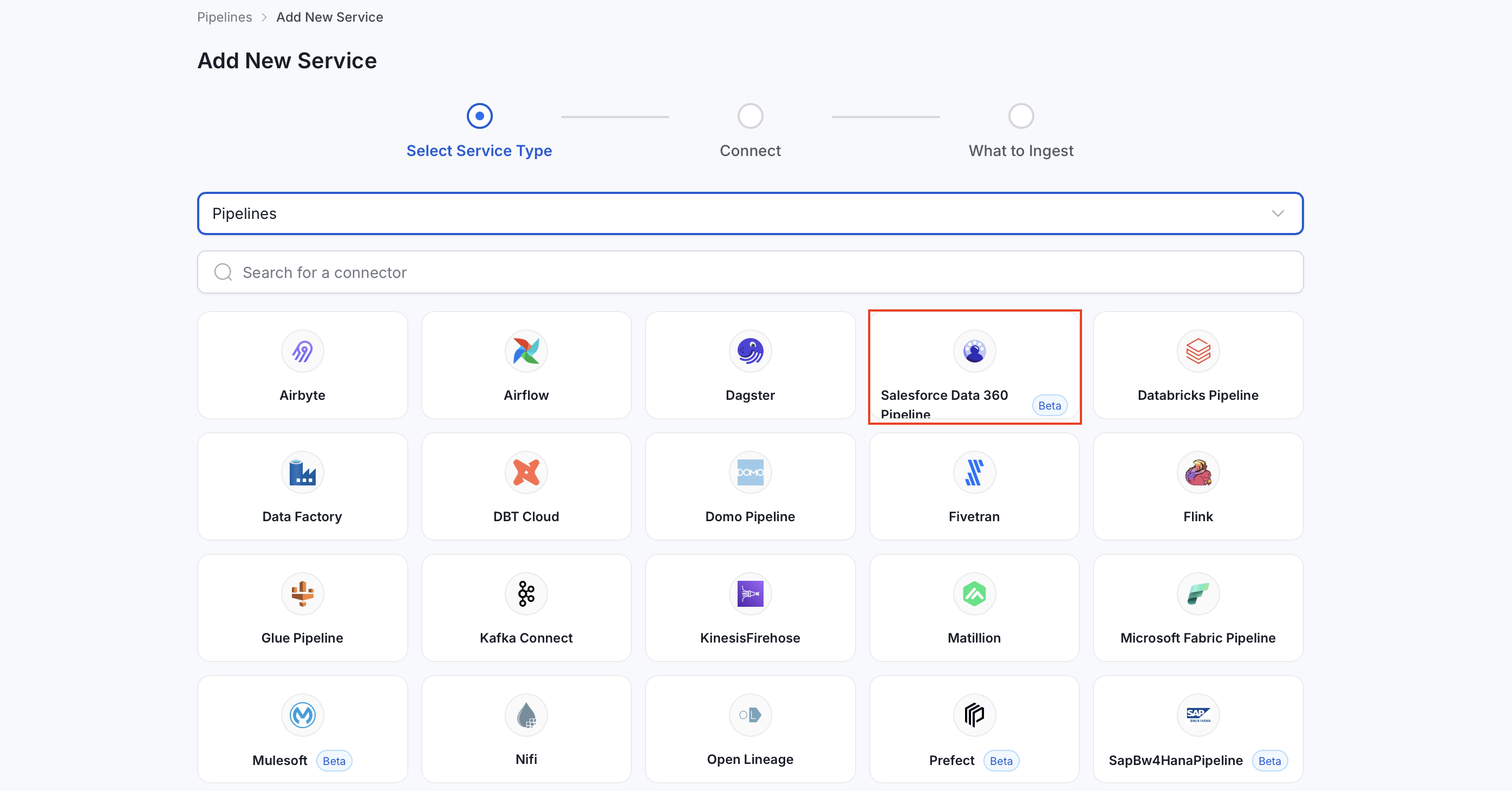

From the service type dropdown, select Pipeline Services, then click the Salesforce Data 360 Pipeline connector tile.

​

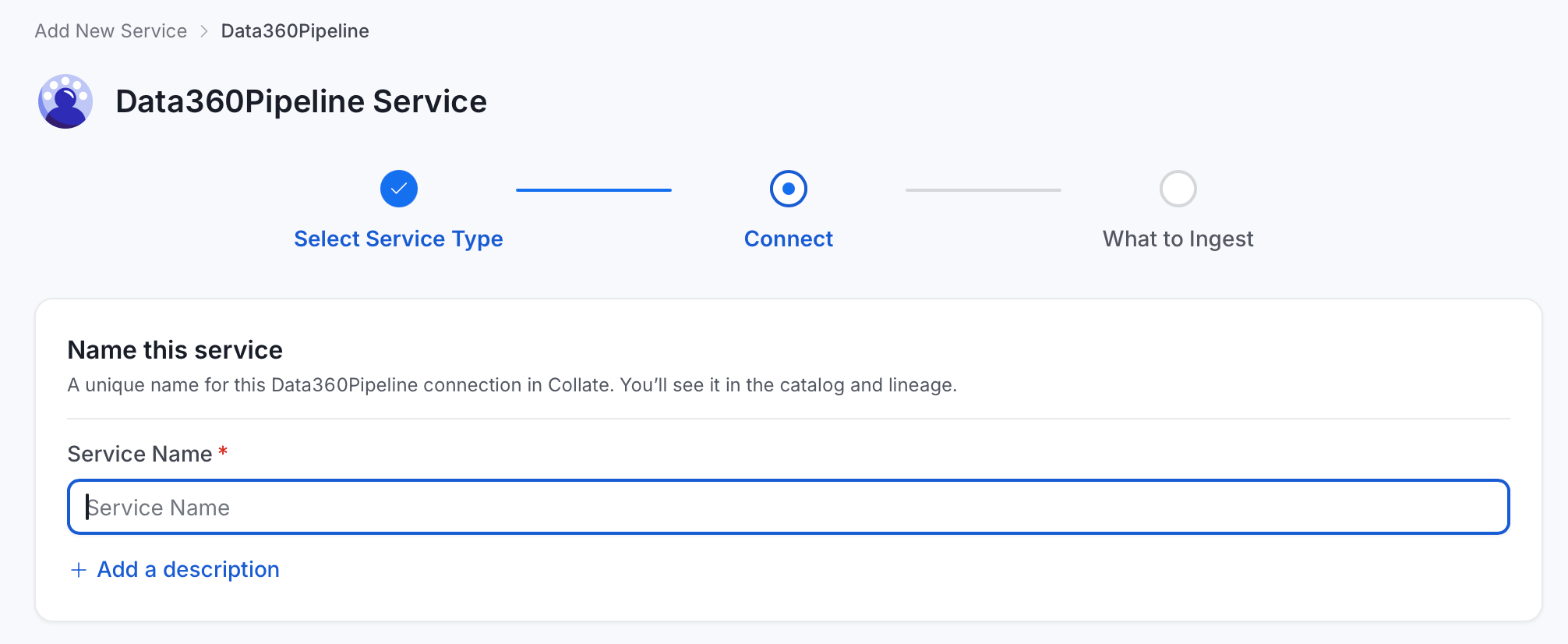

Step 3: Add Service Name and Description

1. Enter a unique, descriptive Service Name. OpenMetadata identifies services by their service name. Enter a name that distinguishes this deployment from other Salesforce Data 360 services you are ingesting metadata from.
2. Optional: Enter a Description for the service.

​

Step 4: Configure Connection Options

Specify your source credentials and verify the connection.

​

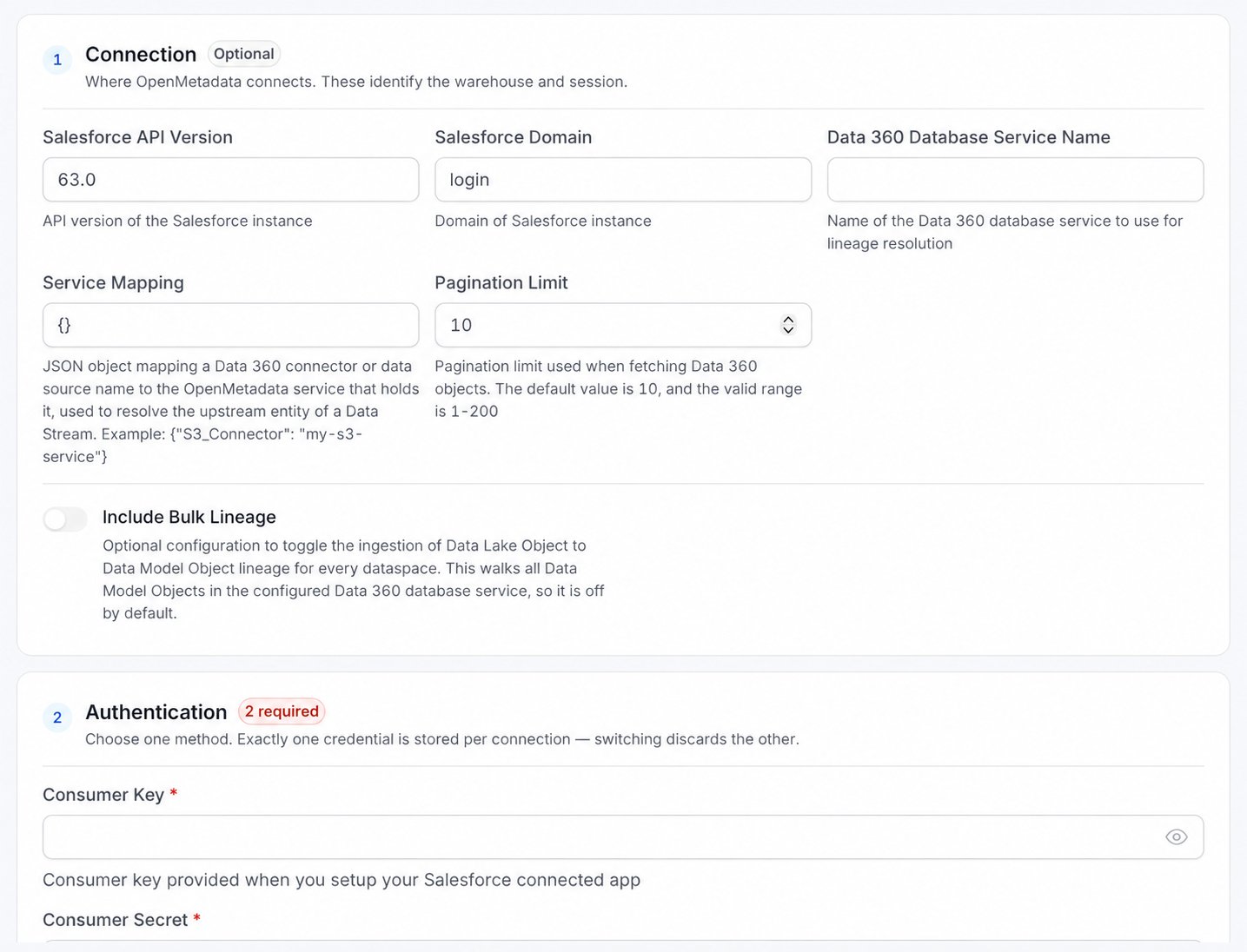

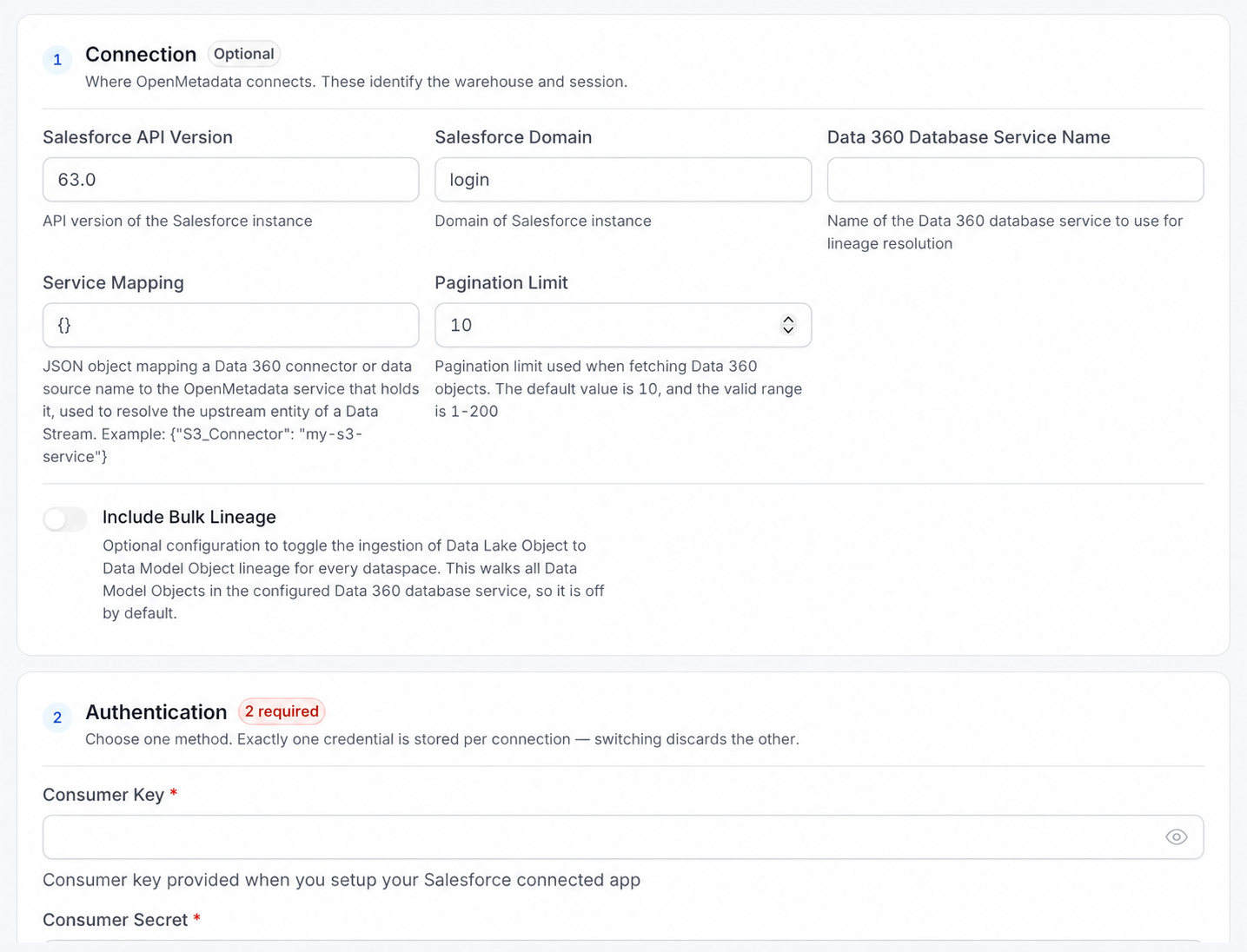

Enter Connection Details

Enter the connection details for Salesforce Data 360. The help panel in the UI describes each field.

• Salesforce API Version: The Salesforce REST API version to call. Defaults to 63.0. Change this only if your Salesforce org requires a different version.
• Salesforce Domain: The domain of your Salesforce instance, used to build the login URL. Defaults to login. Use test for a sandbox, or your My Domain subdomain for a custom domain.
• Data 360 Database Service Name: The name of the Salesforce Data 360 database service in OpenMetadata to use for lineage resolution. Set this to the service you created with the Data 360 database connector so pipeline lineage can link to the right tables.
• Service Mapping: A JSON object mapping a Data 360 connector or data source name to the OpenMetadata service that holds it, used to resolve the upstream table of a Data Stream. For example: {"S3_Connector": "my-s3-service"}. Defaults to {}.
• Pagination Limit: How many Data 360 objects to request per page when listing pipeline objects. Defaults to 10. Valid values are 1–200.
• Include Bulk Lineage: When enabled, OpenMetadata also ingests lineage from Data Lake Objects to Data Model Objects for every data space. This walks all Data Model Objects in the configured Data 360 database service, so it’s off by default.
• Consumer Key: The consumer key from your Salesforce connected app. This is the client identifier used for OAuth authentication.
• Consumer Secret: The consumer secret from your Salesforce connected app. This is the client secret used for OAuth authentication.

​

Test Connection

After you add the credentials, click Test Connection, then click Save.

​

Step 5: Configure Ingestion Options

In the What to Ingest step, configure filter rules for pipelines.

​

How Filter Rules Work

Each rule matches pipeline names using one of five match types:

• Contains: Matches any name containing the value. For example, sales matches my_sales_data and sales_2024.
• Starts with: Matches names beginning with the value. For example, prod_ matches prod_db and prod_schema.
• Ends with: Matches names ending with the value. For example, _raw matches events_raw and logs_raw.
• Is exactly: Matches the exact name only. For example, analytics matches only analytics.
• Matches regex: Matches names using a regular expression. For example, ^prod_.*_v\d+$ matches prod_events_v1.

When include rules and exclude rules both match a pipeline, the exclude rule takes priority.

​

Filter Options

The Pipeline section controls which pipelines OpenMetadata ingests from Salesforce Data 360. It provides the following controls:

• Scan Mode: Choose between the following scan modes:
  • Scan all: Ingests every pipeline the connector can access. This is the default.
  • Only specific: Enables include rules so only pipelines matching at least one rule are ingested.
• Always exclude: Add permanent exclusion rules (shown in red). OpenMetadata never ingests pipelines that match these rules, regardless of include rules.
• Preview: View a real-time summary of what’s in scope based on your current rules.
• Include rules: In Only specific mode, click + Add to define a rule. Added rules appear as chips. OpenMetadata includes a pipeline if it matches any rule.

​

Step 6: Create & Deploy

Click Create & Deploy to deploy the agent and start the first metadata ingestion run. OpenMetadata saves the service configuration and immediately begins pulling metadata from the source. To monitor ingestion progress or view the service you just added, go to Settings > Services and select your service.

​

Configure Metadata Agent and Schedule Ingestion

The Metadata Agent extracts pipelines, tasks, and other structural metadata from your source and keeps your OpenMetadata catalog in sync. It powers discovery, lineage, and governance across your data assets. When you click Create & Deploy, OpenMetadata automatically deploys a Metadata Agent for this service and triggers the first ingestion run. View its status and run history from the Agents tab on the service detail page. To configure the additional Metadata Agent and schedule ingestion, follow these steps:

1. Navigate to Settings > Services and select the service type.
2. Click the service you have added.
3. Select the Agents tab and click Add Agent > Metadata. For some services, the dropdown is not available and clicking Add Agent takes you directly to the agent configuration page.
4. On the Configure Ingestion page, do the following and click Next.
   • Name this Ingestion: Enter a unique recognizable name for this ingestion pipeline.
   • Agent Setup: Configure the core parameters for this agent. The following fields are available:

     Field	Default	Description
     Ownership Update Mode	replace	Set how owners from source metadata update Pipeline owners. In replace mode, resolved owners from the current source replace existing owners. In append mode, resolved owners are appended to active existing Pipeline owners.
     Db Service Names	—	List of database service names used for lineage resolution.
     Storage Service Names	—	List of storage service names used for lineage resolution.
     Messaging Service Names	—	List of messaging service names used for lineage resolution.
     Status Lookback Days	1	Number of days of pipeline run status history to ingest. Only runs within the last N days will be fetched.
     Include Lineage	On	Turn off to stop fetching lineage from pipelines.
     Mark Deleted Pipeline	On	Soft-delete pipelines in OpenMetadata when they are removed from the source. Associated entities like lineage are also deleted.
     Include UnDeployed Pipelines	On	Toggle whether un-deployed pipelines should be ingested. If set to false, only deployed pipelines will be ingested.


   • Filter Patterns: Apply include or exclude rules to scope which pipelines this agent ingests. These follow the same filter options described in Step 5: Configure Ingestion Options.
   • Scope & Behaviour: Control what metadata to include and how to handle deletions. Toggle each option on or off based on your needs:

     Toggle	Default	Description
     Enable Debug Log	Off	Sets the ingestion log level to DEBUG. Useful for troubleshooting.
     Override Metadata	Off	When on, source values overwrite existing descriptions, tags, owners, and display names in OpenMetadata. When off, OpenMetadata only updates fields that have no existing value.
     Override Lineage	Off	When on, existing lineage is replaced with newly extracted lineage on each run.


5. On the Schedule Interval page, set when the agent runs:
   • Schedule: Choose a preset interval (Hourly, Daily, Weekly, Monthly) or enter a custom cron expression.
   • On-Demand: No automatic schedule; trigger the agent manually when needed.

6. Click Add to deploy the agent.

​

Configure the Lineage Agent

The Metadata agent doesn’t ingest lineage. After the Metadata agent succeeds, add a separate Lineage agent:

1. Open the pipeline service and select the Agents tab.
2. Click Add Agent, then select Add Lineage Agent.
3. Configure its schedule.
4. Click Add & Deploy.

The Lineage agent requires Data 360 Database Service Name in the service connection. The workflow fails when that field is empty. Include Bulk Lineage also applies only to the Lineage agent. Enable it to ingest Data Lake Object-to-Data Model Object lineage for every data space.

​

Configure the Usage Agent for Pipeline Status

The Metadata agent doesn’t ingest run status. Add a separate Usage agent to populate Pipeline Status:

1. Open the pipeline service and select the Agents tab.
2. Click Add Agent, then select Add Usage Agent.
3. Set Status Lookback Days to the run-history window you want to ingest.
4. Configure its schedule.
5. Click Add & Deploy.

​
