In this section, we provide guides and references to use the OpenAPI/REST connector.

Configure and schedule REST metadata workflows from the OpenMetadata UI:

Ingestion Deployment

To run the Ingestion via the UI you'll need to use the OpenMetadata Ingestion Container, which comes shipped with custom Airflow plugins to handle the workflow deployment. If you want to install it manually in an already existing Airflow host, you can follow this guide.

If you don't want to use the OpenMetadata Ingestion container to configure the workflows via the UI, then you can check the following docs to run the Ingestion Framework in any orchestrator externally.

Requirements

Generate OpenAPI Schema URL

Generate OpenAPI schema url for your serviceOpenAPI spec

Metadata Ingestion

1. Visit the Services Page

The first step is to ingest the metadata from your sources. To do that, you first need to create a Service connection first.

This Service will be the bridge between OpenMetadata and your source system.

Once a Service is created, it can be used to configure your ingestion workflows.

Select your Service Type and Add a New Service

2. Create a New Service

Click on Add New Service to start the Service creation.

Add a new Service from the Services page

3. Select the Service Type

Select VertexAI as the Service type and click Next.

Select your Service from the list

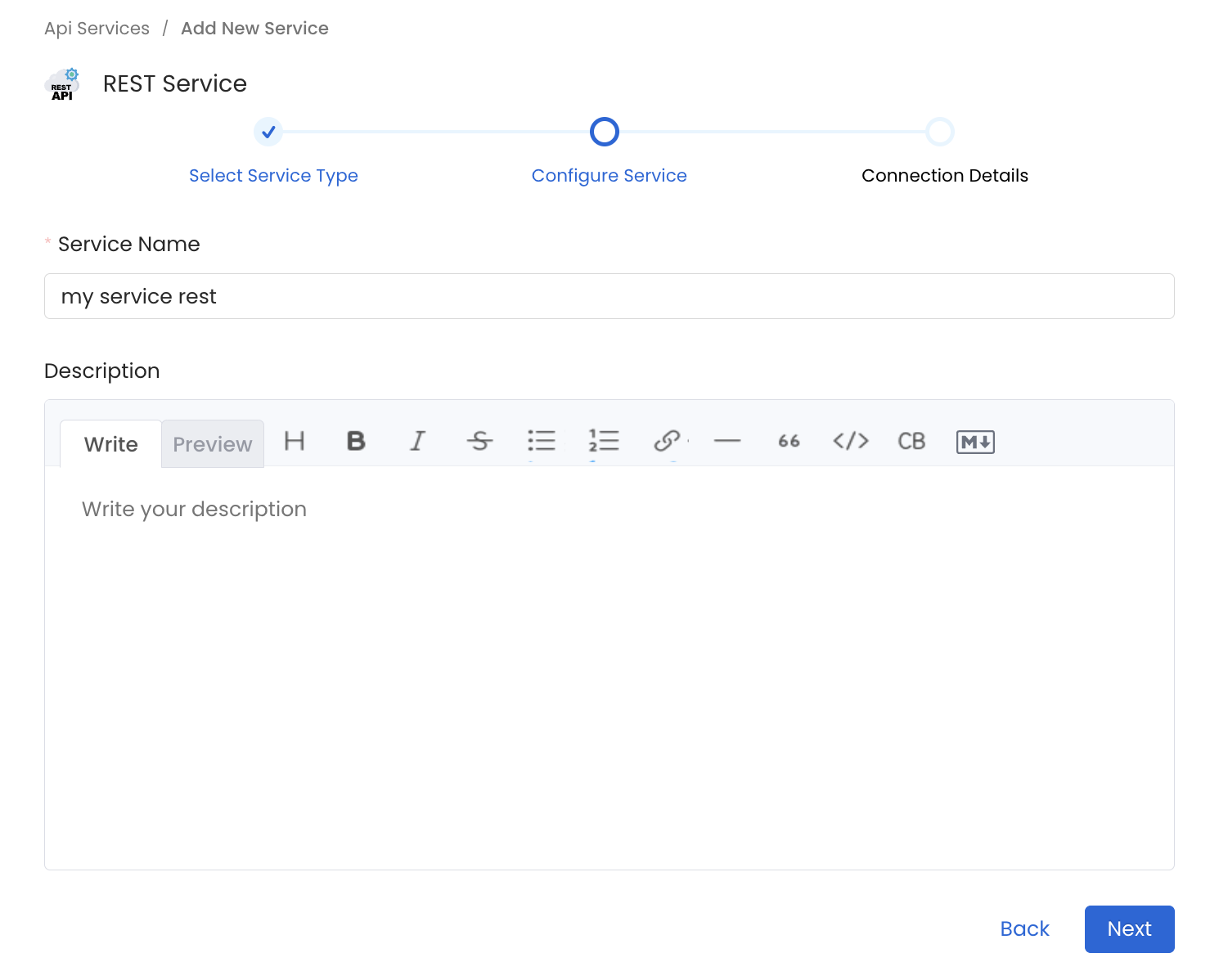

4. Name and Describe your Service

Provide a name and description for your Service.

Service Name

OpenMetadata uniquely identifies Services by their Service Name. Provide a name that distinguishes your deployment from other Services, including the other VertexAI Services that you might be ingesting metadata from.

Note that when the name is set, it cannot be changed.

Provide a Name and description for your Service

5. Configure the Service Connection

In this step, we will configure the connection settings required for VertexAI.

Please follow the instructions below to properly configure the Service to read from your sources. You will also find helper documentation on the right-hand side panel in the UI.

Configure the Service connection by filling the form

Connection Options

OpenAPI Schema URL: An OpenAPI schema URL typically refers to the URL where the OpenAPI Specification (OAS) document of a web service is hosted. The document defines the service's API, including available endpoints, request/response formats, authentication methods, etc. It is usually in JSON format. for e.g. https://petstore3.swagger.io/api/v3/openapi.json

Token: An authentication token to connect to an OpenAPI schema URL. It is only required if the API schema is protected or secured.

6. Test the Connection

Once the credentials have been added, click on Test Connection and Save the changes.

Test the connection and save the Service

8. Schedule the Ingestion and Deploy

Scheduling can be set up at an hourly, daily, weekly, or manual cadence. The timezone is in UTC. Select a Start Date to schedule for ingestion. It is optional to add an End Date.

Review your configuration settings. If they match what you intended, click Deploy to create the service and schedule metadata ingestion.

If something doesn't look right, click the Back button to return to the appropriate step and change the settings as needed.

After configuring the workflow, you can click on Deploy to create the pipeline.

Schedule the Ingestion Pipeline and Deploy

9. View the Ingestion Pipeline

Once the workflow has been successfully deployed, you can view the Ingestion Pipeline running from the Service Page.

View the Ingestion Pipeline from the Service Page

Troubleshooting

Workflow Deployment Error

If there were any errors during the workflow deployment process, the Ingestion Pipeline Entity will still be created, but no workflow will be present in the Ingestion container.

You can then Edit the Ingestion Pipeline and Deploy it again.
From the Connection tab, you can also Edit the Service if needed.
